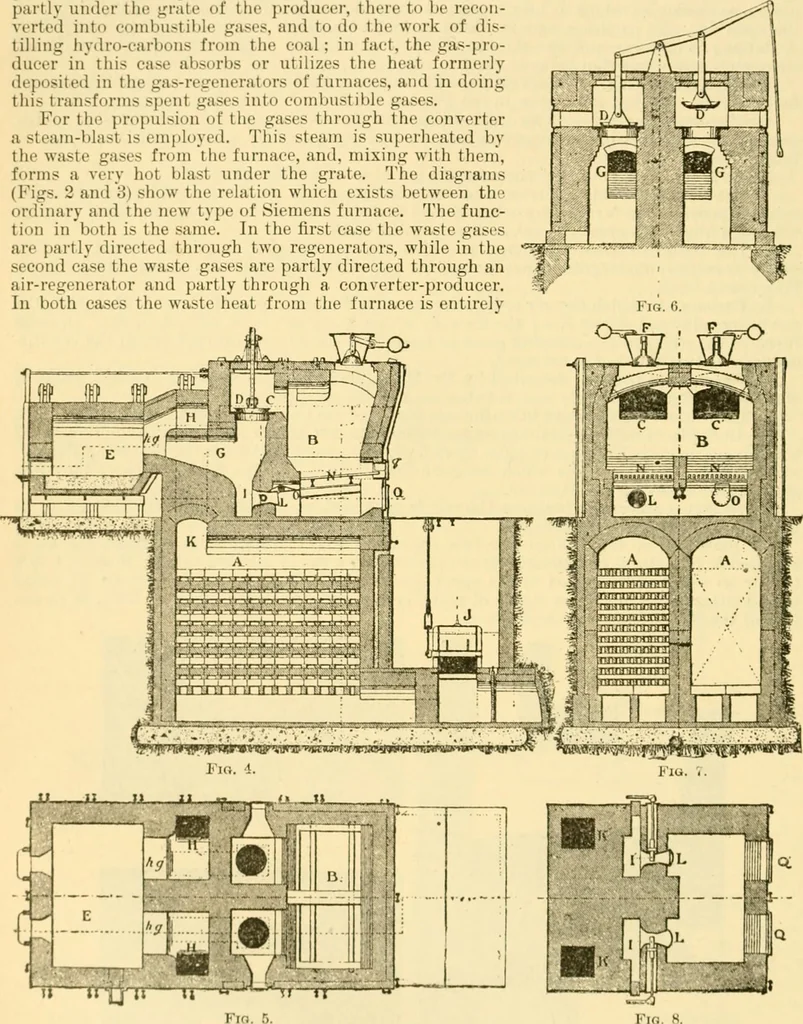

gases from the furnace, and. mixing with them,forms a very hot blast under the grate. The diagrams(Figs. 2 and 3) show the relation which exists between theordinary and the new type of Siemens furnace. The func-tion in both is the same. In the first case the waste gasesare partly directed through… … Fig. a Kios. 4-8.—Siemens regenorntive gas-furnace. utilized, and the gas and air reach the furnace in an intensely heated condition. In bothcfuses, again, tliere is a reversal in the direction of the flame in tlie furnace, which insures uni-form luating (pf the furnace-chamber and the materials…
