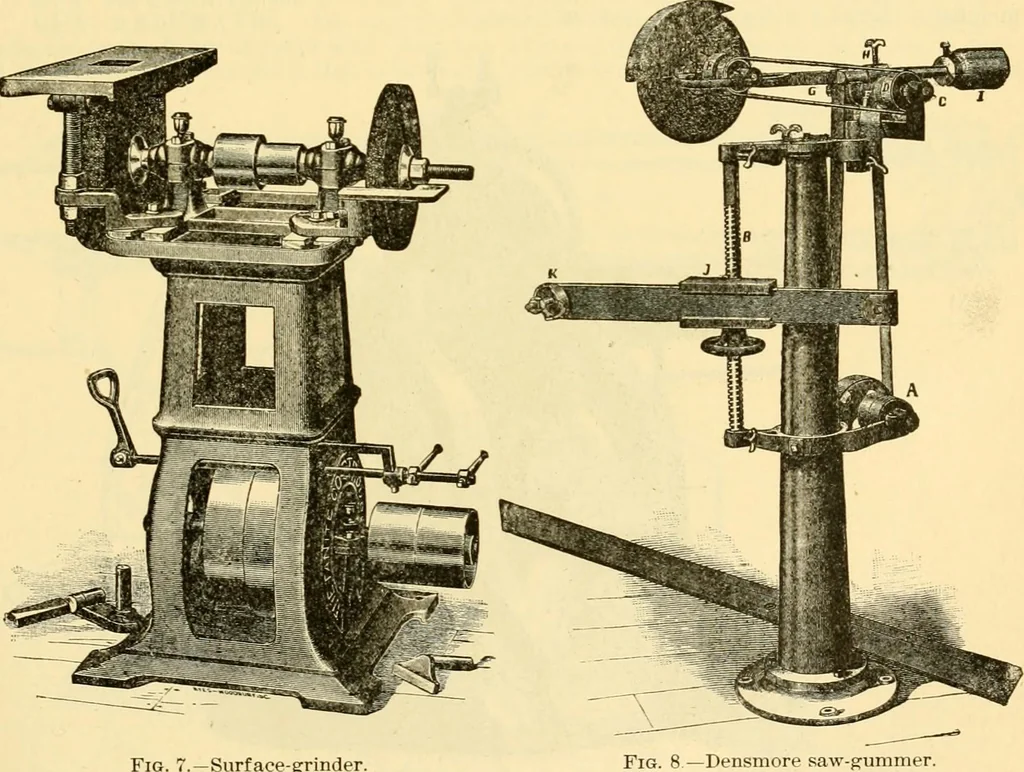

Fig. C—EiiKr-ry planer. point on its under side, to form a bearing for an adjusting screw. This block is also boredto receive the arm G, which supports the grinding-wheel. The arm G is movable in theblock, and can be fastened in any desired position by the set screw H. 7 is a counterbalance … -Surface-grinder Fig. 8—Densmore saw-gummer. for the wheel. J is a stock, secured in place as desired, by a set screw not shown, and sup-ported from below by the hand-wheel, by which it can be elevated and depressed. The stockhas wavs for a saw-bar. or a carriage with clamps for the blade. The…
