Appleton's dictionary of machines, mechanics, engine-work, and engineering : illustrated with four thousand engravings on wood ; in two volumes (1873)
D. Appleton and Company · New York : D. Appleton and Co. · leaf 195

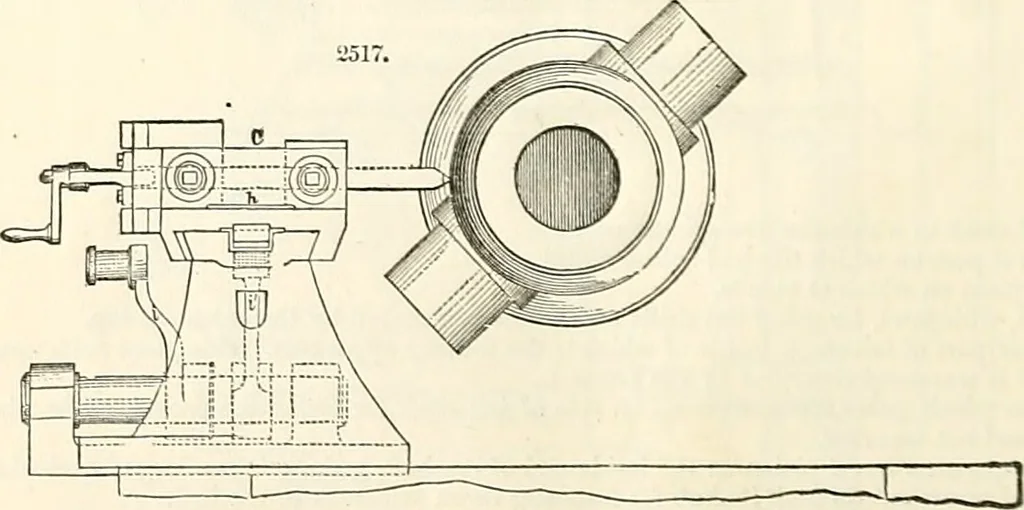

Fig. 2516. Back (sliding) head for turning or boring. ^, lever for throwing head out of geer. /, feed-screw. n, gibs. Fig. 2520. h, lever for throwing slide rest out of geer. f, feed-screw. m, half-rest for feed-screw. n n, gibs on sUde-rest. Fig. 2521. d, pulley for drawing boring-bar. e,… … Fig. 2617. c, planing-head for planing between trunnions. It, tool-holder. Fig. 2522. Standing-head. b, feed-geer, (same in Fig. 2519.) g, handle for changing feed-geer. LATHE. 191
