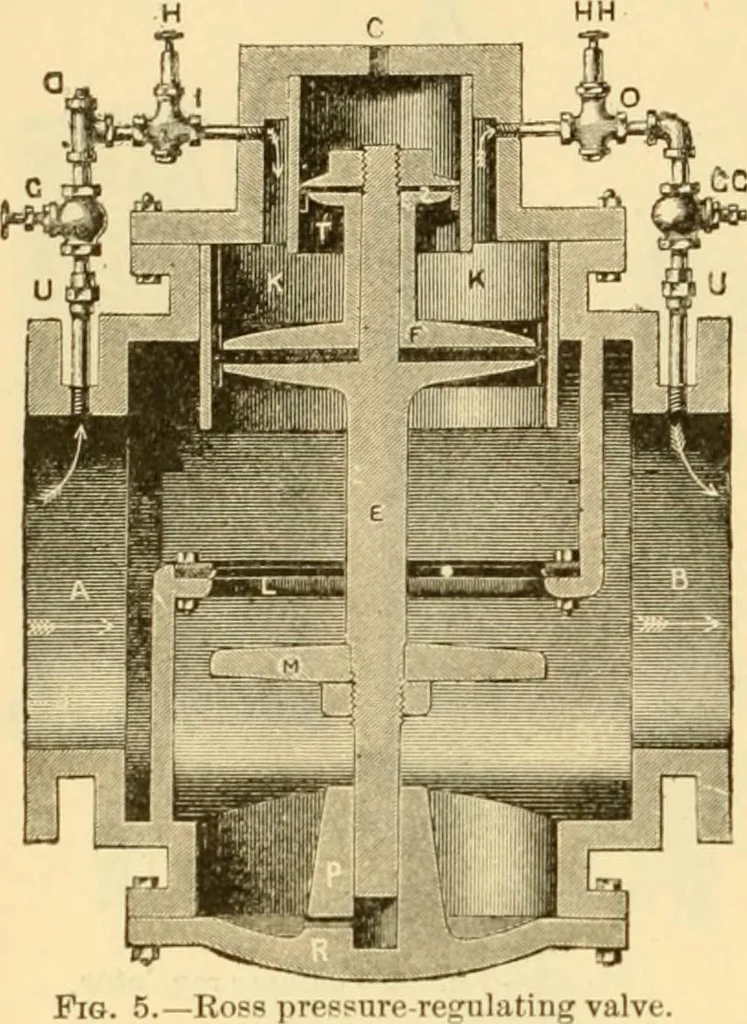

ve until the pressure, accumulat-ing in the pipes on tiie outlet side, is exerted onthe full area of the valve beneath M. When 20lbs. is reached an equilibrium exists, and anyfurther rise of j)ressure at B will increase thepressure twice as much in chamber. K. Thisdecreases the flow of water… … Llilating valve. extra demand on the system cause the pressure to fall below 20 lbs. on tlie outlet side. B, relief valve, (). would closeand regulating valve, 1,would open, thus allowingpistons, /and T. with valve,M. to open, and allowingsufficient water to pass tokeep the y)ressure at 20 lbs.Any…
