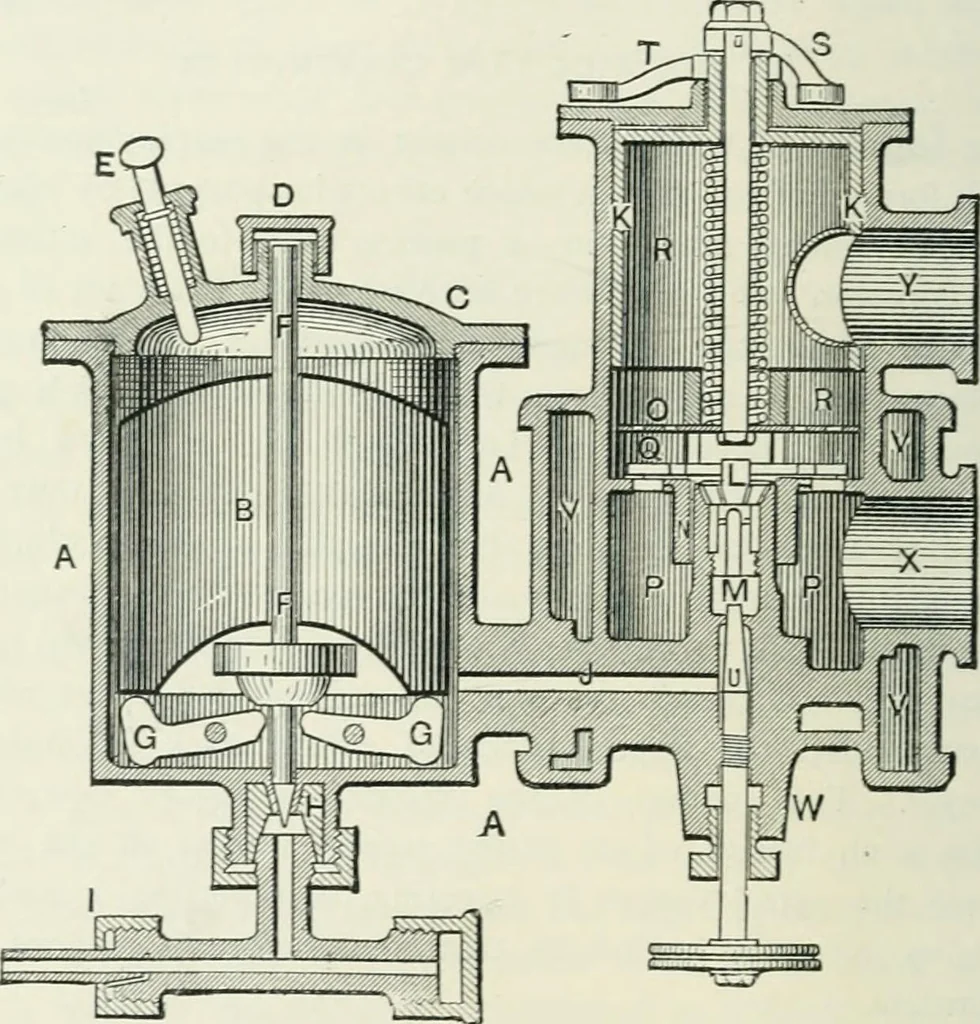

e improvements recently made to render it absolutelyefficient later on), and its freedom from waste or residuarydeposit. The general working of this type can be brieflyexplained by a reference to one of the best known specimensextant, the Longuemare, an illustration of which is here sub-mitted.… … Fig. 8.—The Longuemare Carhuietter AAA, Float Chamber ; b, Air-tight Copper Float; D, Cap to protectNeedle Valve Spindle ; E, Spring Piston for agitating Float; F, NeedleValve Spindle; G G, Float Balance Levers; H, Coned Joint containingFilter; I, Petrol Supply Pipe ; J, Passage from Float Chamber…
