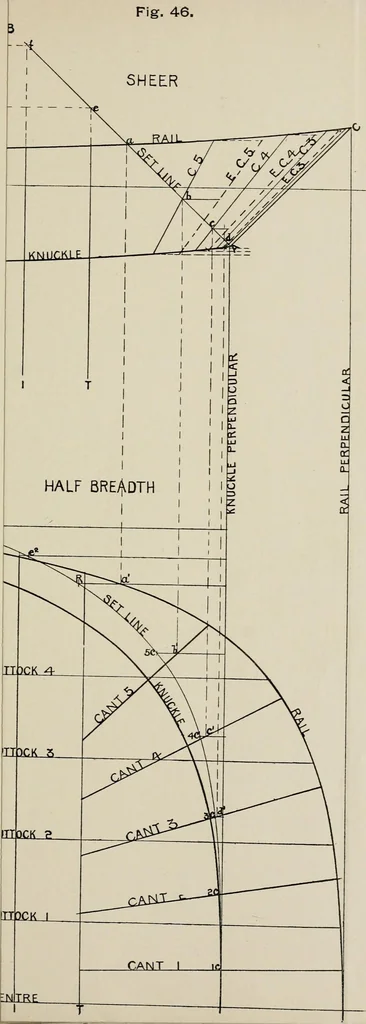

X along X/3. The position on the rail andknuckle edges are found by girthing in the Sheer their length to therail and knuckle respectively above and below the set line, anddescribing arcs of circles from the points on the expansion setline as was done for the cants. The cutting points of these… … w STERN EXPANSION Fig. 46. BODY
