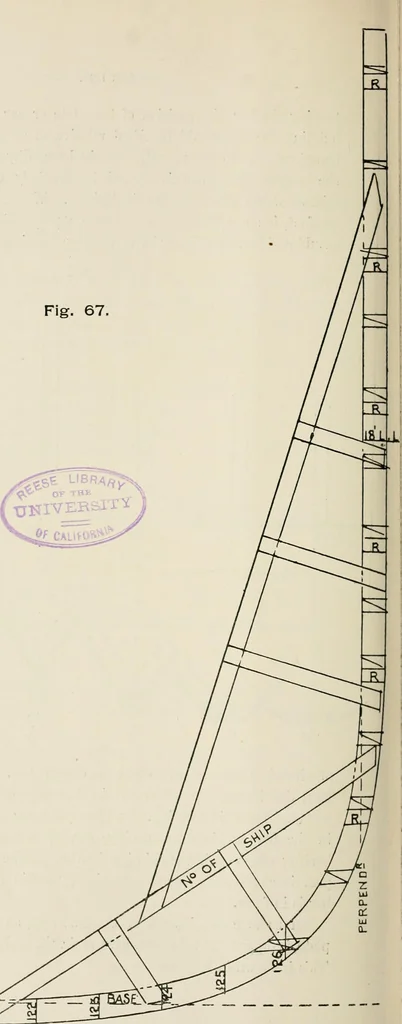

fore edge of the bar; which willbe found useful in erecting. In some yards the rivet holes are drilledin the bar previous to turning, leaving out those in way of thelanding edges until the ship is faired-up on the blocks. The betterplan is considered, where convenient, to drill these holes after… … SCARPH MOULDS. 77 The form of the stem scarph, when associated with side barkeel, is given in Fig. 69. Stern Frame.—The forge usually makes its own moulds froma complete figured drawing on a scale of half an inch to a foot, whichis supplied by the shipbuilder, together with enlarged detail…
