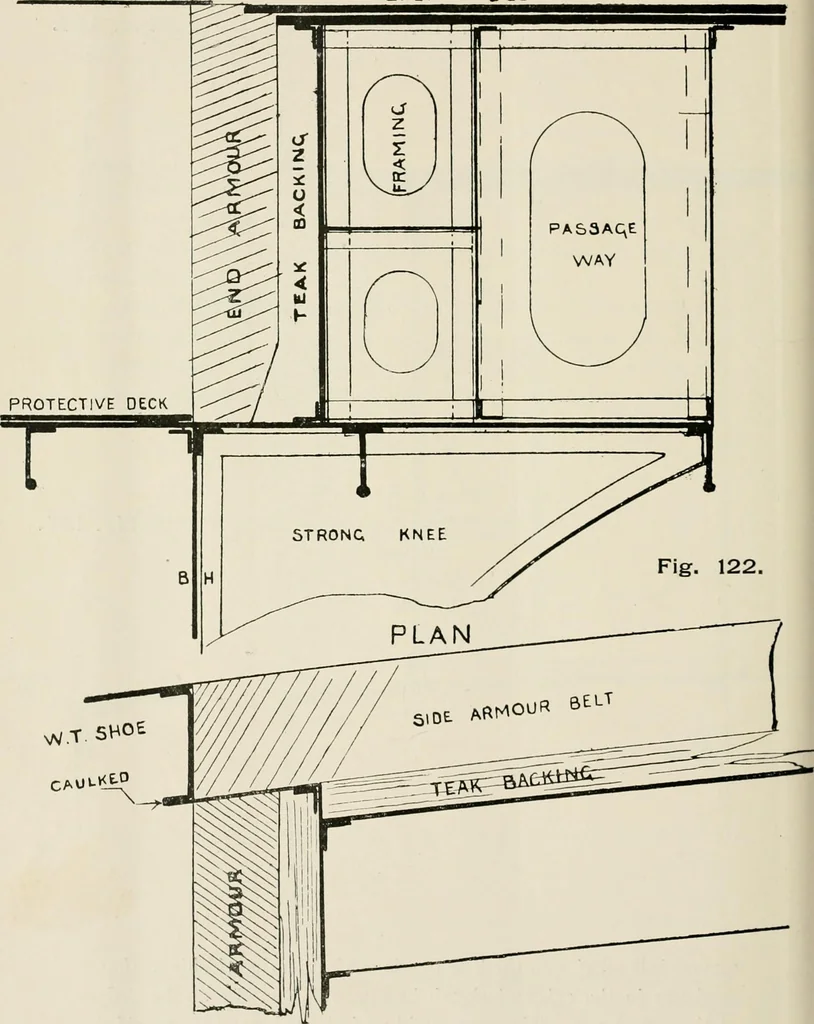

armour belt relative to the load-line is marked on the midship section,as shown in the enlarged sketch in Fig. 118, and also on the Bodysections, Fig. 119. The armour will project out beyond the moulded Fig. 120. FORE AND AFT SECTIONAL ELEVATION OF END ARMOUR. LIQHT DECK BELT DECK … ARMOUR. 121 form the thickness of the adjacent shell plates, which are insidestrakes, so that the extreme side will be flush for some distance. Infairing-up, on the loft floor, in the first case the moulded form, thisprojection is deducted; therefore, it must be added on in drawing inthe armour.…
