Naval architecture: a manual on laying-off iron, steel, and composite vessels (1898)
Watson, Thomas Henry · London; New York: Longmans, Green and co., [etc.] · leaf 305

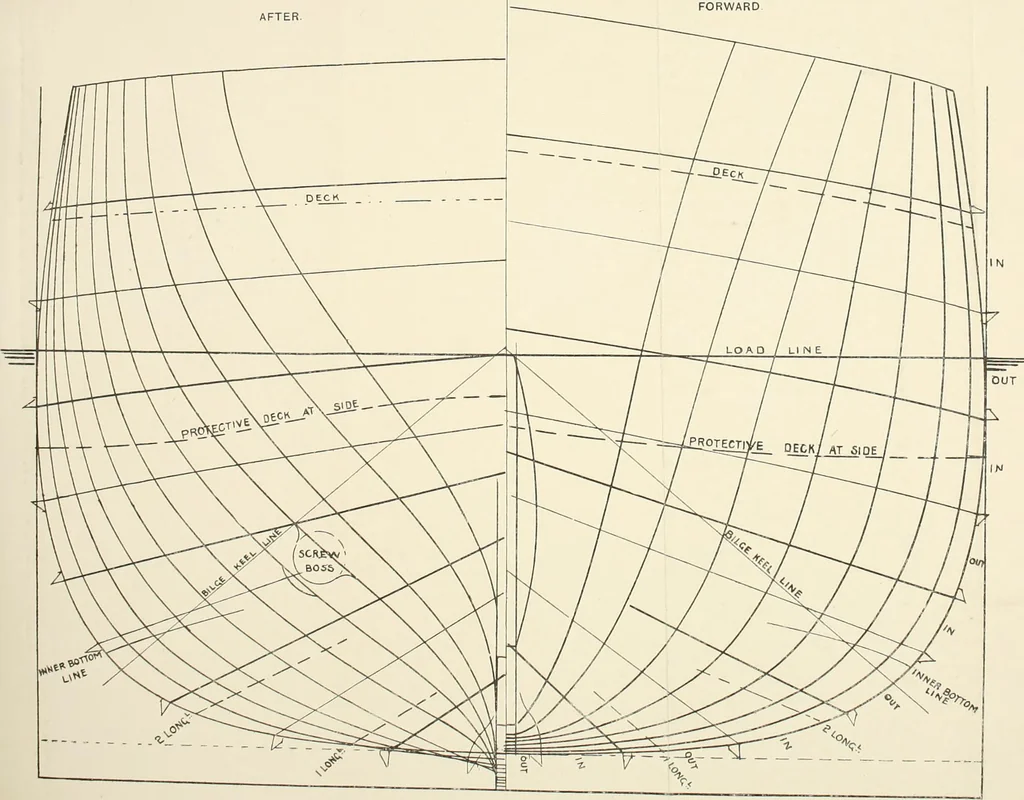

OUT Fig. 134.BODY SECTIONS OF AN UNARMOURED CRUISER. FORWARD … SHELL PLATING AND BILGE KEELS. 129 efficiency against rolling. The line is shown in each Body, in Figs.133 and 134, drawn as square as possible to frame curves throughoutits length ; which is about half length amidships. This line appearscurved when placed in the Sheer and Half Breadth. Bossed…
