Naval architecture: a manual on laying-off iron, steel, and composite vessels (1898)
Watson, Thomas Henry · London; New York: Longmans, Green and co., [etc.] · leaf 335

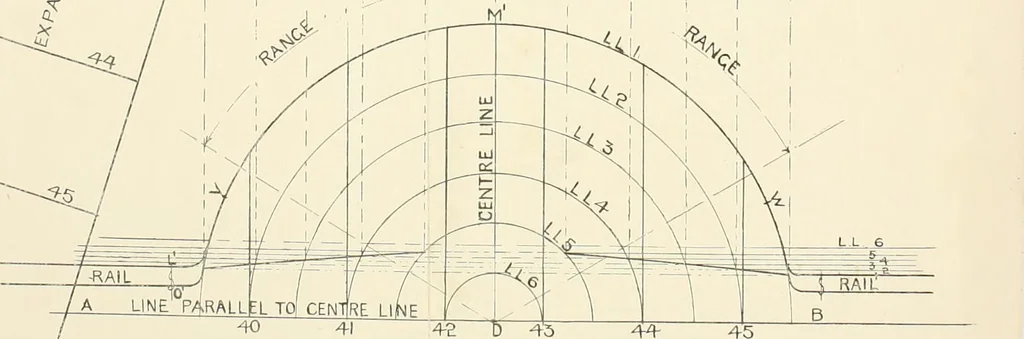

45 HALF BREALpTH … GVN GALLERIES OR SPONSORS. 143 L L 1 the outstretch of the gallery sufficient to work gun to the rangeand depression. Join C to A1 with a suitable angle. The point C isgenerally kept on a level with the lower edge of the gunwale moulding.Draw in the Body the level lines L L 2, L L 3, etc., and…
Naval architecture -- Handbooks, manuals, etc · Naval architecture · Ships, Iron and steel
