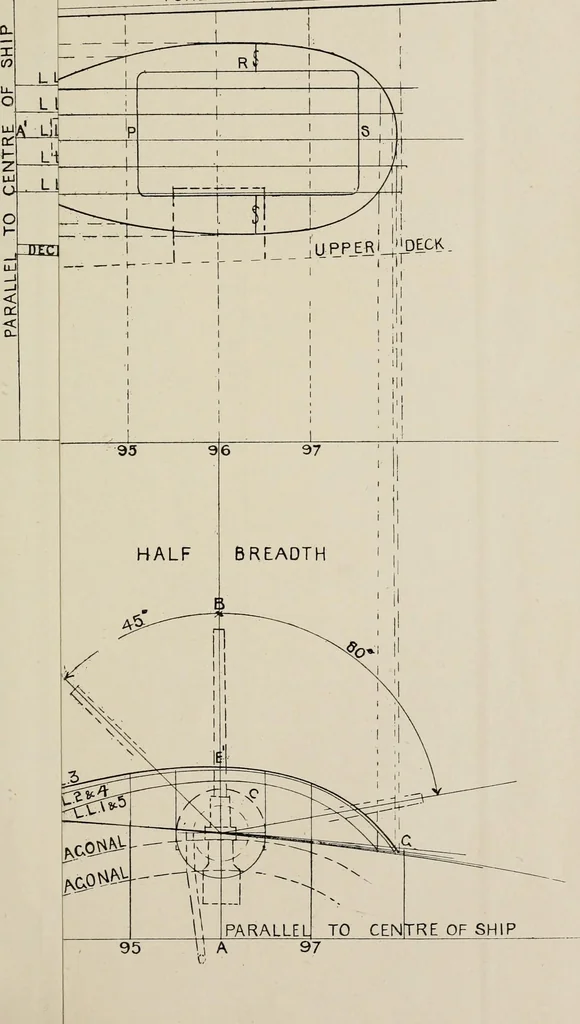

sitions.A port P R S is made for working the gun at extreme angles, whichmeans, that the lowrer edge sill should clear when at a depression ofsay 25 degrees, and the top edge at an elevation of 30 degrees at 80degrees range. Doors are fitted to this port, hinged fore and aft, ortowards the… … Fig. 150. BODY. SHEER. FO R EC ASTLE___DECK_
