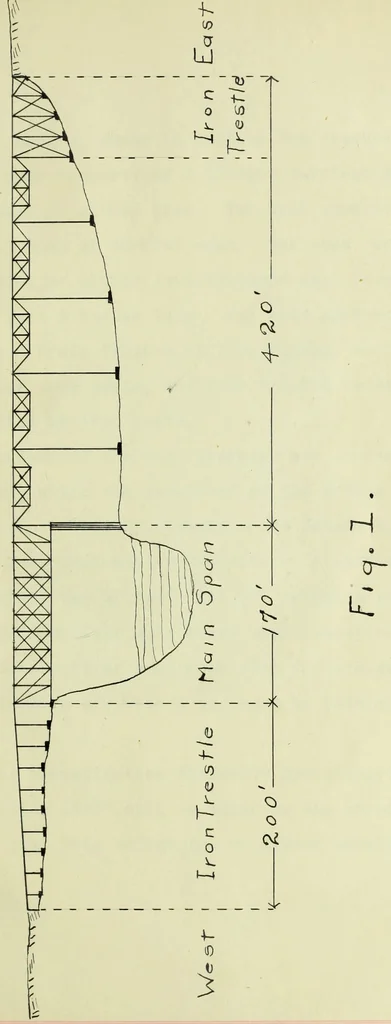

anville, Illinois, and it is assumed that this thesis is a re-port to the City Engineer. The bridge in question is known asthe Woolen Mill Bridge, and spans the west fork of the VermilionRiver. It is situated at the western limits of the city ofDanville, a place of about 24000 inhabitants. The… … I I I 3. Fig 1, page 2, shows in outline the eleTation of thebridge. The roadway consists of a 17-foot carriage-way with a4 l/2-foot sidewalk on either side. The west approach consists often trestle bents each of 20-foot span. The span crossing theriver is a Whipple, or double intersection, deck…
