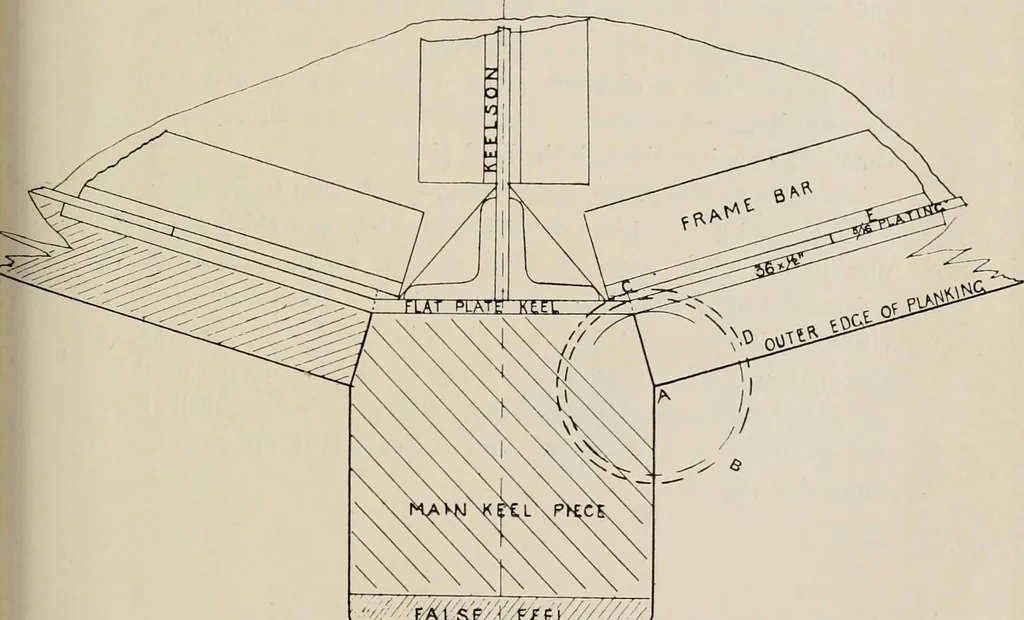

cting palms to partial bulk-heads, shown at A B, F E, and J K sections. The intermediateframes between H and K are bossed in, as seen in section G H, and aconnection to tube made at P. Those forward of K J are bossed outsufficiently to allow the withdrawing of the engineers tube, etc., orone or two… … I- • rxisE-j mmm this is carried round the full length of the tubes as indicated by thesections at different points. The form of the frames in way of thetubes are scrieved in on the boards, after fairing up on the loft floor.The loftsman supplies, on a board, the pattern-makers with a longi-tudinal…
