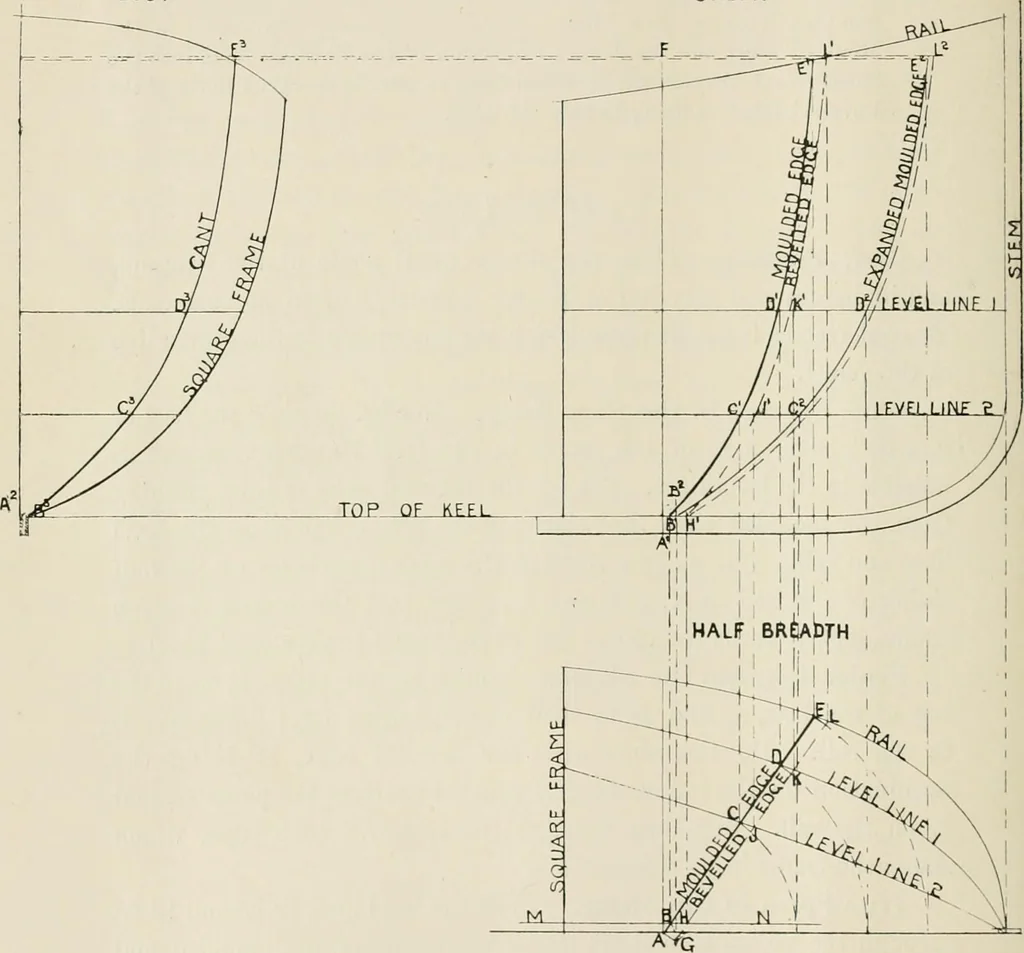

A E, set off from F, F E2, and A B on the top of the keelfrom A1 F. Do the same with the bevelled edge, taking care to lift 28 NAVAL AltCHITECTUKE. from the line A G, which is square to A. E at the centre ; G H is thedistance for the bevelled edge on the top of the keel in the Sheer, andG L that… … taken square to the moulded line. B2, C2, D2, and E- is the true formof the moulded edge, to which the frame must be turned. Woodmoulds may be made giving the shape of each frame, with the positionof the plate edges, keelsons, decks, and ribbands, accompanied by abevelling-board showing the bevel…
