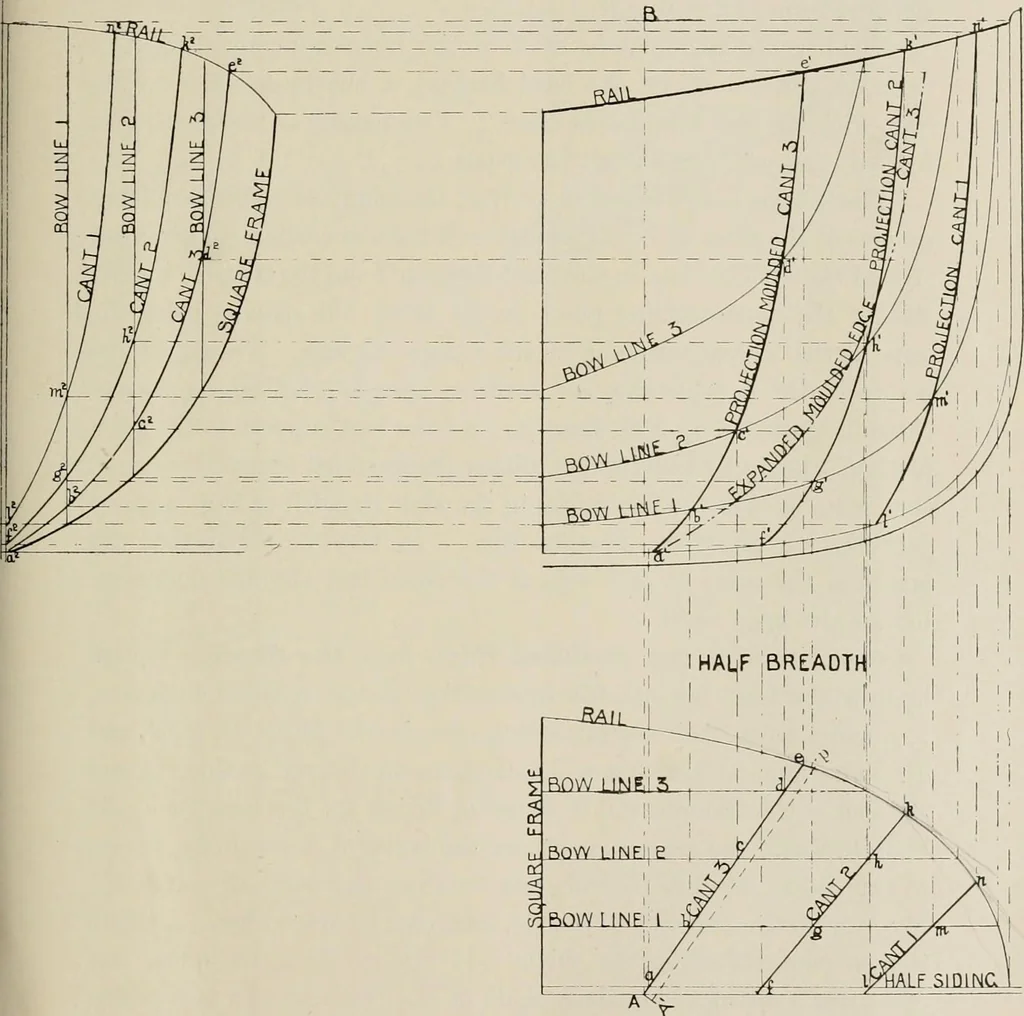

FORWARD CANTS CANT FEAMES. 31 of half siding, etc., from A1 on the line of the bevelled edge, andtransfer into the Sheer on their level heights from AB, passing acurve through the spots, which will give the line of the bevelled edge.It is usual to place the true form of the cants forward on… … keelsons marked upon them. Sometimes a wood mould is made ofeach with the different markings on and a line for the foot. Projection of the Cants into the Sheer on the BowLines.—Show cants in the Half Breadth and the Body of Fig. 23 in the manner already described. Square up the points a, b, c, d,…
