Common-sense stair building and handrailing (1903)
Fred T Hodgson · Frederick J. Drake and Co. · leaf 39

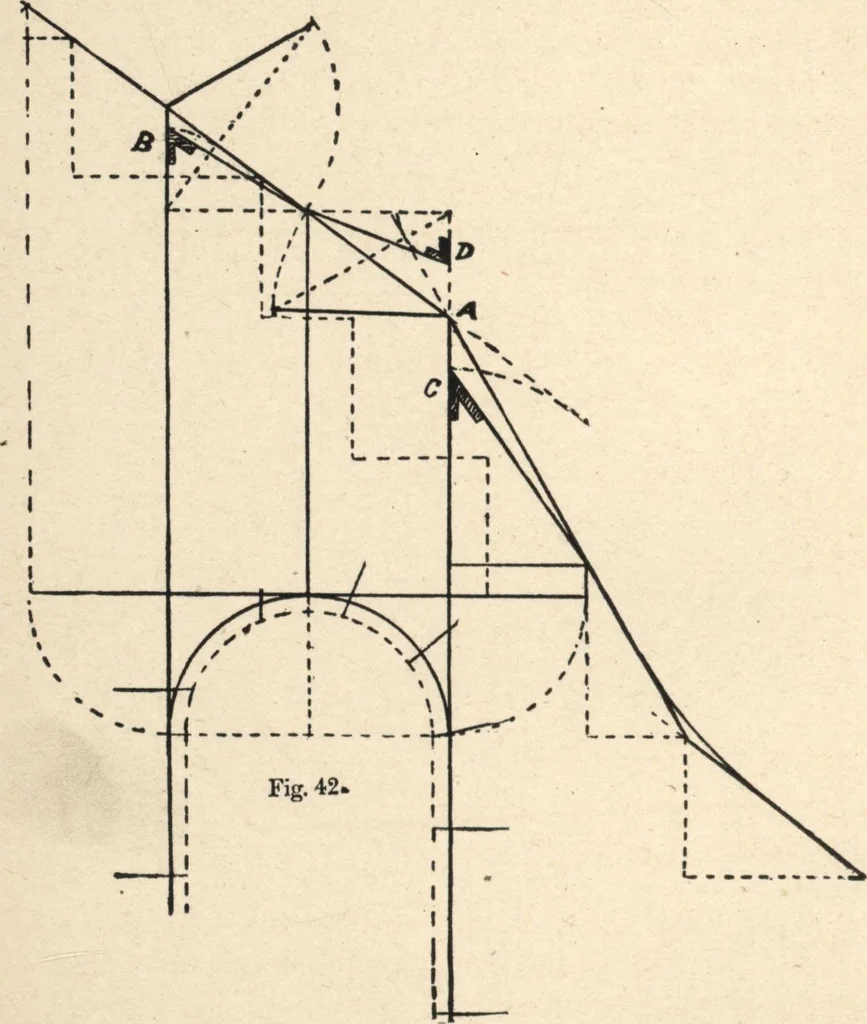

r Fig. 41. 36 COMMON^SENSE HANDRAILING redrawn, until the student has become so familiar witheach one of them that he can draw them from memoryalone. Such practice will not make very seriousinroads on his time, and what investments in time aremade will, in the not very distant future, return… … In Fig. 42 we represent a flight of stairs with fourwinders, quarter landing, and return flyers. FIRST METHOD 37 This shows the ground plans of cylinder, with riserscutting the tangent around the center line of rail; alsothe elevation of risers, the pitch-lines, and thedevelopment of the tangents.…
