A new manual of perspective: containing remarks on the theory of the art, and its practical application in the procudtion of drawings ... Illustrated by numerous engravings (1849)
Whittock, Nathaniel · London, A. Hall & Co. · leaf 98

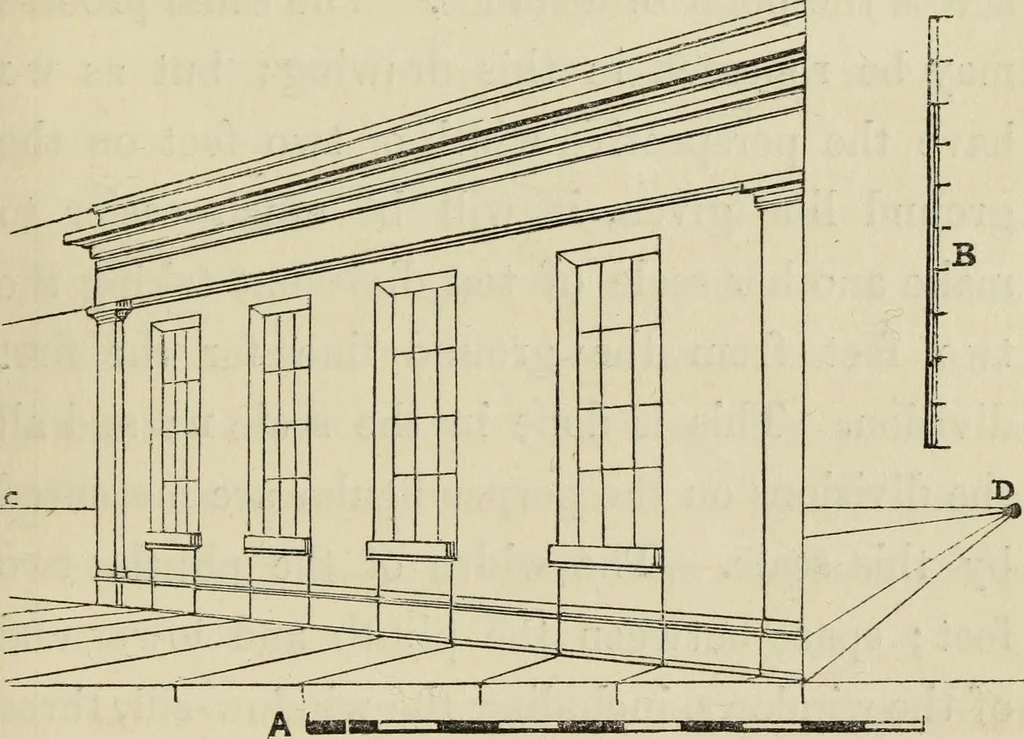

e markedupon the base line. All the divisions cannot beshown in this diagram, but the student will knowhow to continue them beyond the limits of thepicture. Next draw a line from the angle onthe base line to the point of sight d ; and also a MANUAL OF PERSPECTIVE. 95 line to the point of distance.… … Place the square upon the ends of the lineswhere they touch the ground line, and drawfaint perpendicular lines, and the width ofevery object upon the face of the building willbe correctly drawn. 96 MANUAL OF PERSPECTIVE. We now proceed to measure the height ofthe various parts, which in this…
Perspective
Internet Archive · Getty Research Institute · Public Domain Mark 1.0. Free to use for anything.
