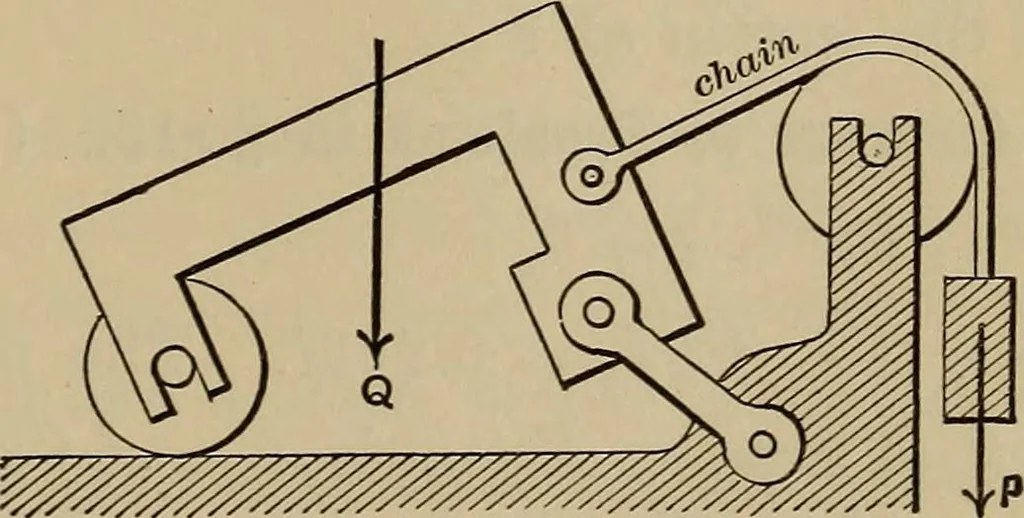

tic curve ? Also, after a is found, find the maximum shear, (h and hare given, and also w; elastic limit supposed not passed.) 3. Fig. 151. By the principles of the graphical statics ofTnechanisni, having the resisting force Q given inamount and position, given also all friction angles con-cerned,…
