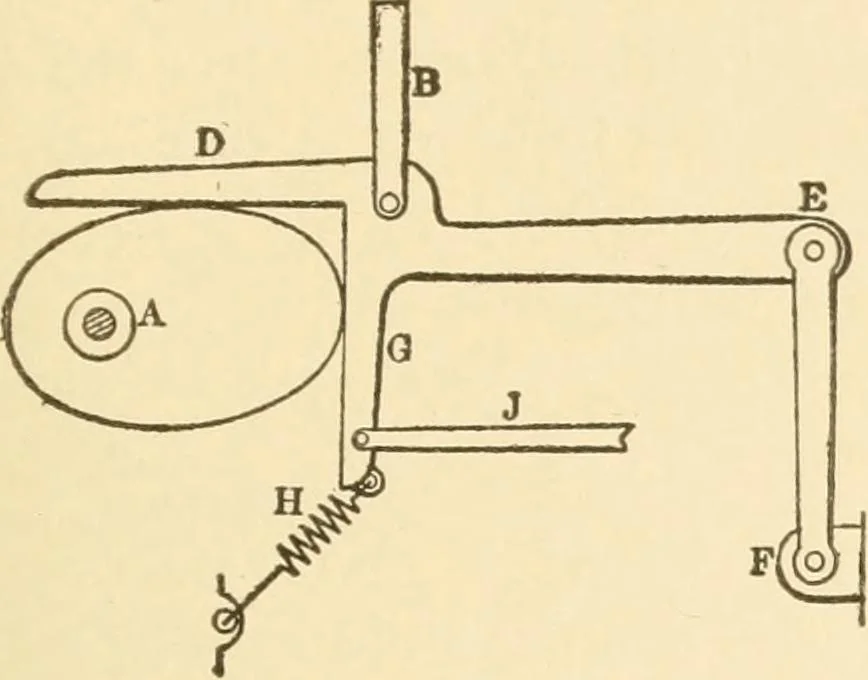

1104. CAM MOTION.—Various appli.cations of cam followers, with direct andoscillating motion. 1105. DOUBLE-CAM MOTION, from a sliding follower. The arm Eof the follower, slides freely in thebox, clamped to the vertical shaft,giving two equal motions at right angles. MOTION AND DEVICES CONTROLLING… … 1106. PIVOTED FOLLOWER.— The square-armed follower, pivoted atE and F, is kept in contact with thecam by the spring H, and so producedissimilar motions in the connectingrods B, J. 0-=--a:.l 1107. RECIPROCATING MOTION, fromtwo cranks on opposite ends of a shaft.
