Notes and examples in mechanics; with an appendix on the graphical statics of mechanism; (1903)
Church, Irving P. (Irving Porter), 1851-1931 · New York, J. Wiley & sons; [etc., etc.] · leaf 90

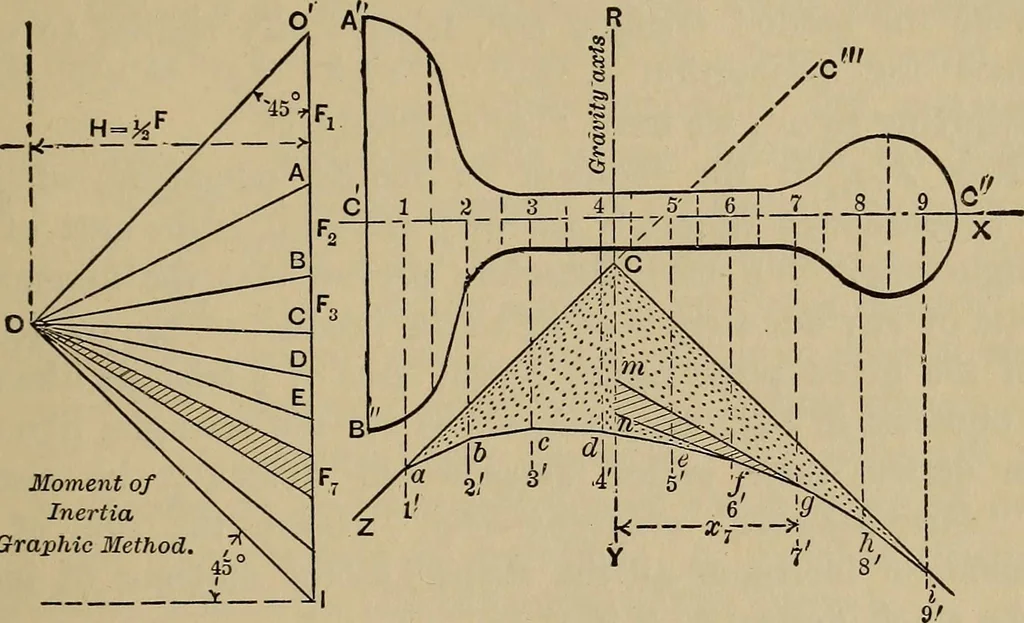

From Otts Graphical Statics. MOMENT OF INERTIA—GRAPHICAL METHOD. 81 (no widtli being more than one eighth, saj, of the total width -[ toAB^. These widths need not be equal. Through the centres of gravity of the strips (1, 2,3, etc.) drawindefinite lines (1 . . 1, 2 .. 2, etc.) |1 to AB (with most… … Moment of Inertia Graphic Method. Fig. 95. F^^F^, etc., of the successive strips, m the order and positionshow^n (in most Instances * each such area may be assumed pro-portional to the length of the strip measured through the centreof gravity). Through 0 and / draw lines at 45° with 0I, asshown, to…
