Notes and exercises in natural philosophy : including statics, hydrostatics, pneumatics, dynamics and hydrodynamics : designed for the use of normal and grammar schools, and the higher classes in common schools (1860)

Sangster, John Herbert, 1831-1904 · Montreal : J. Lovell · leaf 153

An illustration from Notes and exercises in natural philosophy : including statics, hydrostatics, pneumatics, dynamics and hydrodynamics : designed for the use of normal and grammar schools, and the higher classes in common schools, 1860, leaf 153

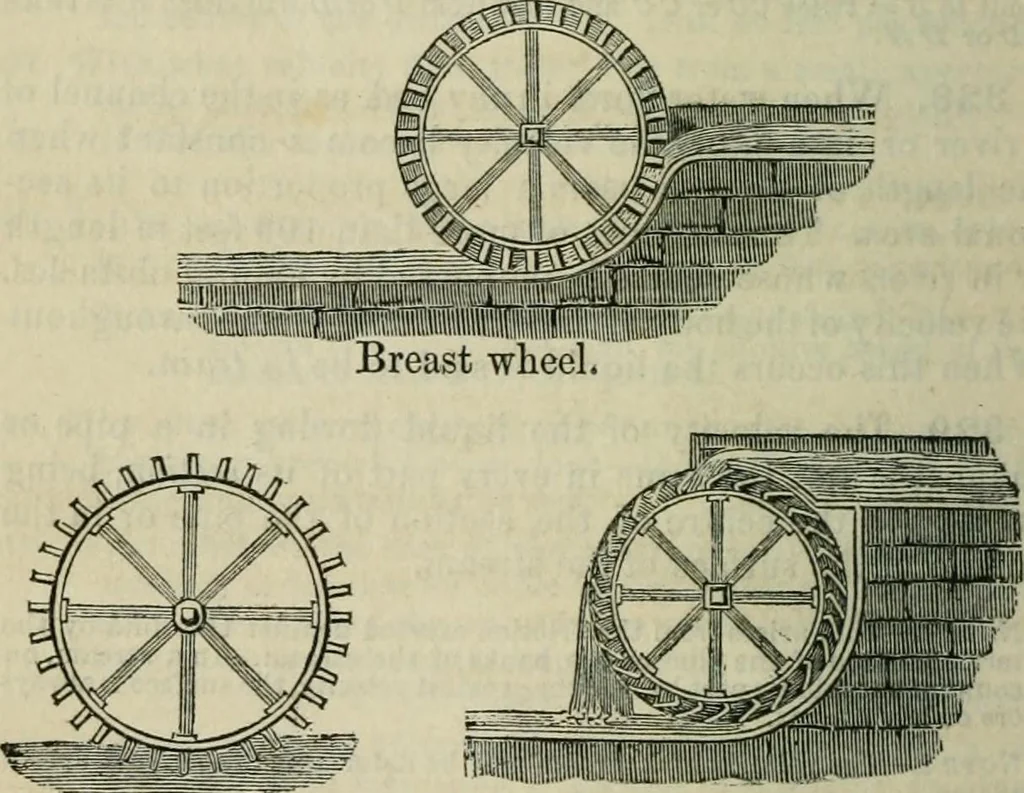

given length and diam,i:ter:~ 150 HYDRODYNAMICS. [Aeis. 331-333. Let d = diameter of pipe, I ^ length, h = height, and v = velocity.Then, all the dimensions being in feet, v = 48^ ] r-r——. [ Note.—This is the formula of M. Poncelet and is regarded as strictlyaccurate. 331. Water is frequently made… … Undershot wheel. Oversliot wheel. Note.—The mode in which the water is made to act on these is repre-sented in Pig. 29. It will be observed that the undershot wheel is moved bythe momentum of the water—the breast wheel and overshot wheel by itsweight aided by its momentum. An overshot wheel will…
