Notes for mechanical drawing; arranged for the use of the students of the Mechanic arts high school and the Evening school of trades (1904)

Mathewson, Frank E. (Frank Elliott), b. 1869 · Springfield, Mass. · leaf 120

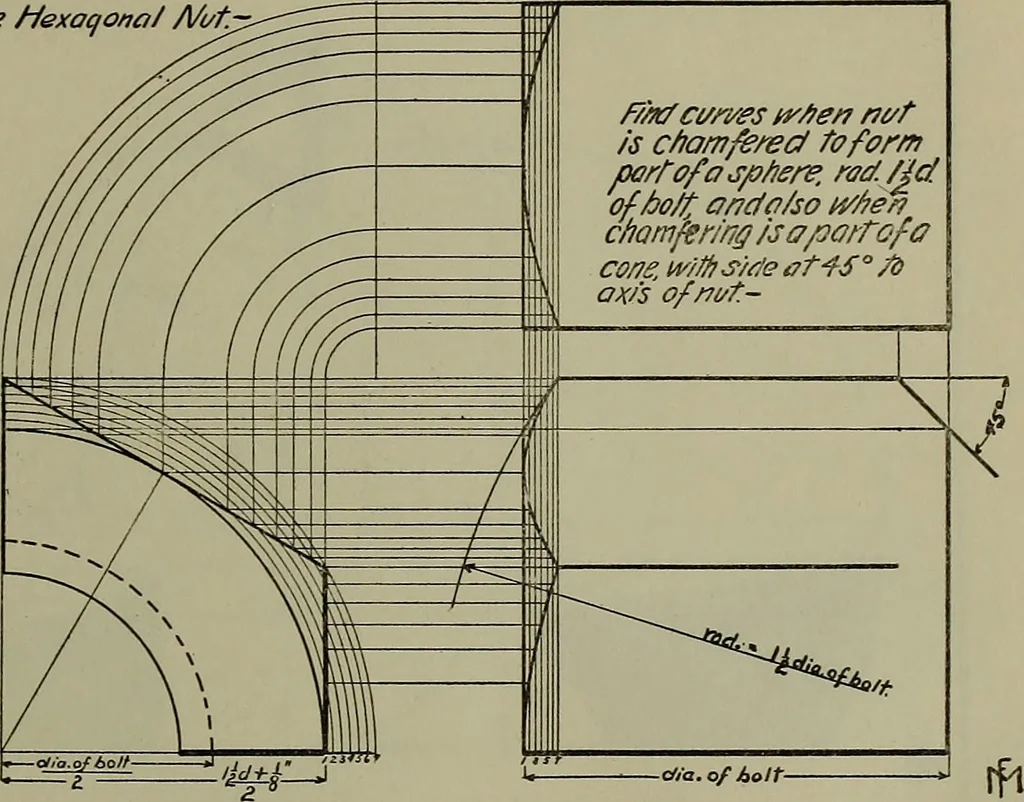

An illustration from Notes for mechanical drawing; arranged for the use of the students of the Mechanic arts high school and the Evening school of trades, 1904, leaf 120 — Head for 9 Speed Lathe Make detail drawings of each part. MECHANICAL DRAWING 57 -The /iexaqona/ A/i/t^ … MECHANICAL DRAWING 58
