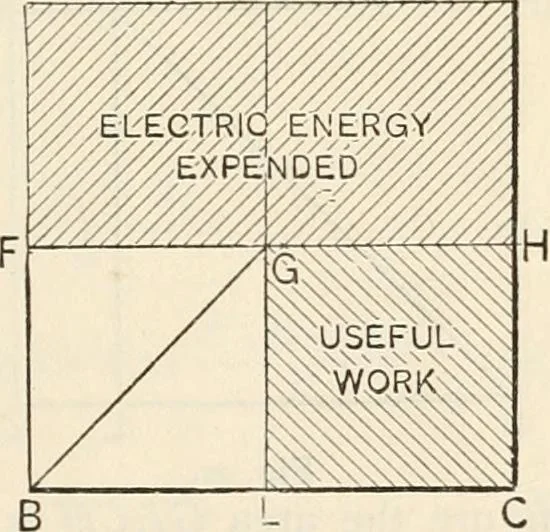

cost, or work with the greatesteconomy, regardless of the amount of work done. These conditions are of the greatest importance, but aresomewhat difficult to reconcile.. Prof. Thompson has de-vised a graphic illustration A K Dwhich presents them veryclearly. Draw AB to representE, the electromotive… … Fig. 31EH parallel to BC And KL parallel to AB. Then the work of the generator is CE E(E-e)R ,the work of the motor is Ce e (E-e)R 122 NOTES ON The return Ce CE E (E - e) But e (E — a) is the area of GLCH, and E (E — e) isthe area of AFHD. These areas are, therefore, markedas electric energy…
