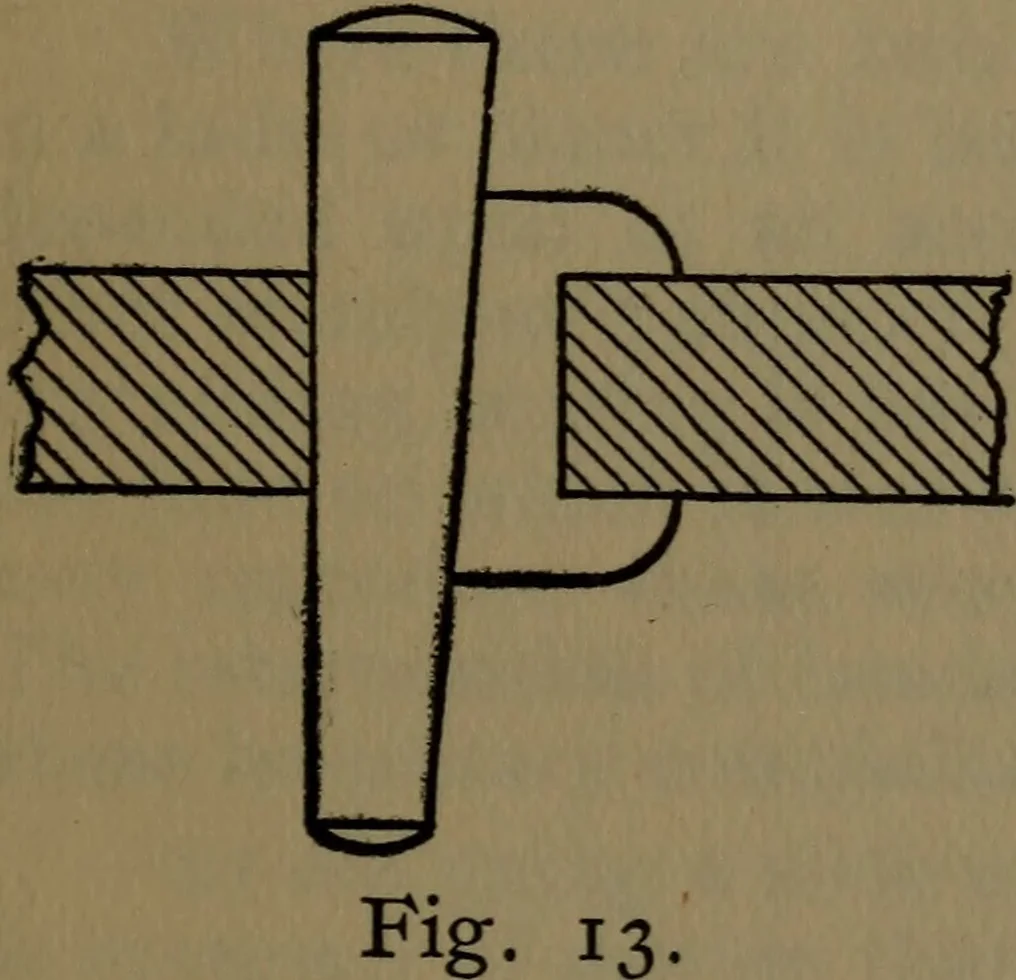

a taper equaland opposite to that of thecotter. (Fig. 13) In design-ing these for strength thetwo can be regarded as re-sisting shear together. For shafting keys seechapter on shafting. EXAMPI^ES. 1. Design a knuckle joint for a soft steel boilerstay, the pull on stay being 12000 lbs. and the… … 52 MACHINE DESIGN. Required the two diameters of rod and dimensionsof cotter to sustain a pressure of 150 pounds per squareinch on the piston. Factor of safety = 8. 4. Design a cotter and gib for connecting rod ofengine mentioned in Ex. 3, both to be of machinerysteel and ,75 inches thick. SLIDING…
