Essentials of drafting; a text and problem book for apprentice, trade and evening technical schools (1918)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 150

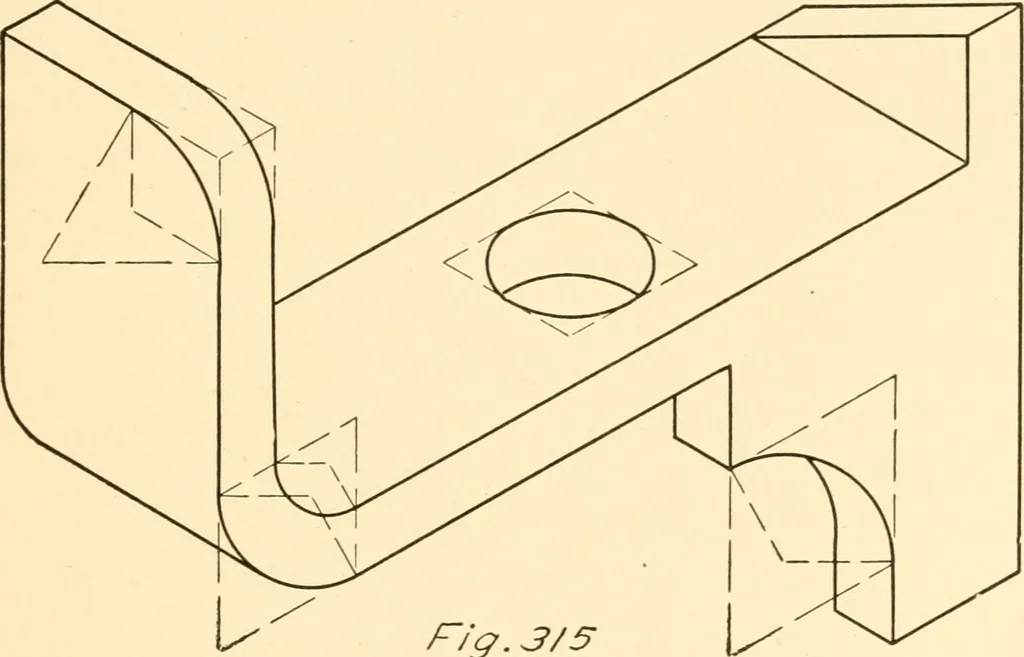

whichthe object touches it located. Other points can be located bytaking measurements parallel to the axes. Angles. — Angles do not show in their true size in isometricdrawings. This is evident from an inspection of Fig. 305 where PICTURE DRAWING 133 the angle at B is 120° and that at C is 60°… … f~/^. 3/5 Positions of the Axes. — The axes may be placed in any posi-tion provided the angles between them are kept equal to 120°as illustrated in Fig. 312.
Mechanical drawing
