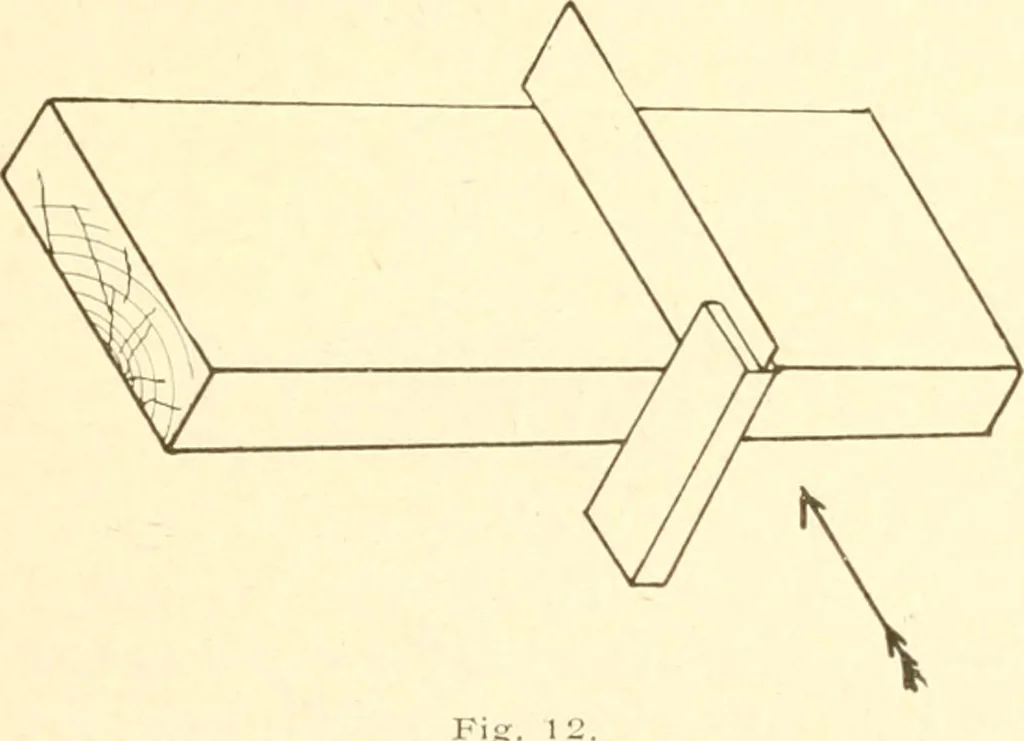

agram. If the gauge ismoved in the opposite direction, it is plainly to be seen thatthe marking point on the gauge would follow the direction ofthe fiber and the liye would not be parallel to the edge gaugedfrom. The try square is a tool used for squaring across the workand squaring the edges, or… … is placed on the work in this manner to determine the cor-rectness of an edge, pressure should be put on the portion oftlie square as shown in the diagram, and with the pressure inthis direction, move the square slowly downward until theblade comes in contact with the work at some point, whichwill…
