Benjamin, Charles H[enry], 1856- [from old catalog] · New York, H. Holt and company · leaf 167

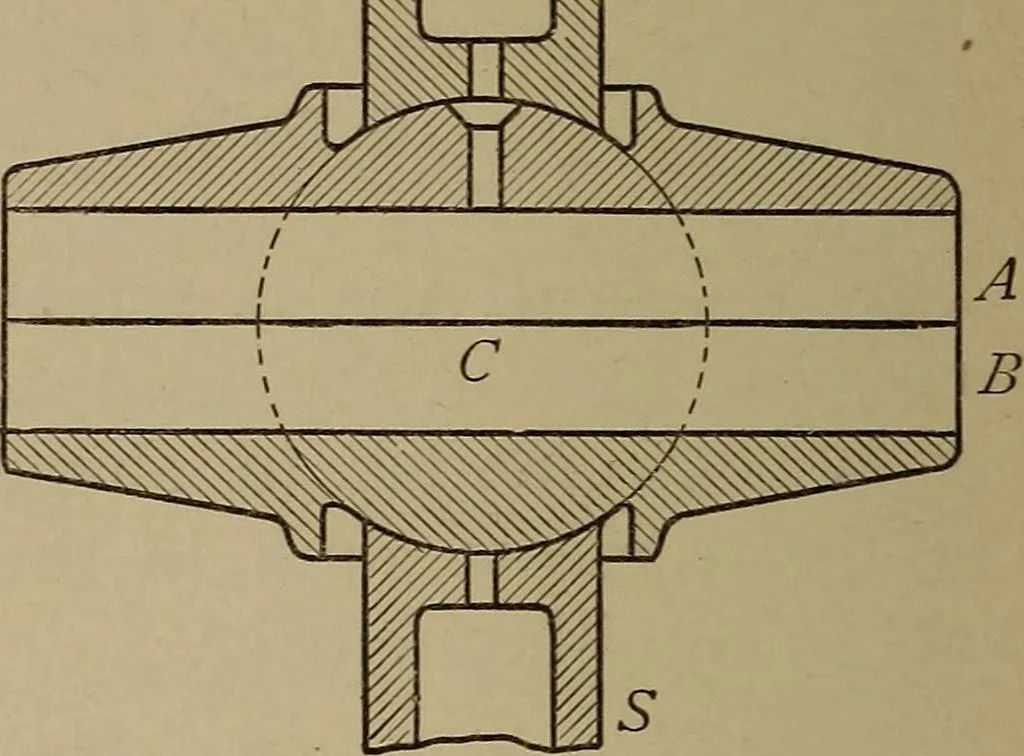

ue and straight, thebearings should be to a certain extent self-adjusting. Eeliable experiments haveshown that usually one-half of the power developed byan engine is lost in the friction of shafting and belts.It is important that this loss be prevented as far aspossible. The boxes are in two parts… … Fig. 65. 44.) The best method of supporting the box in thehanger is by the ball and socket joint ; all other con-trivances such as set screws are but poor substitutes. Fig. 65 shows theusual arrangement of g| ||^. the ball and socket. A and B are the twoparts of the box. Thecenter is cast in…
Machine design
