Crawshaw, Fred D. (Fred Duane), b. 1874, Phillips, J. D. (James David), 1869- joint author · Chicago, New York, Scott, Foresman and company · leaf 193

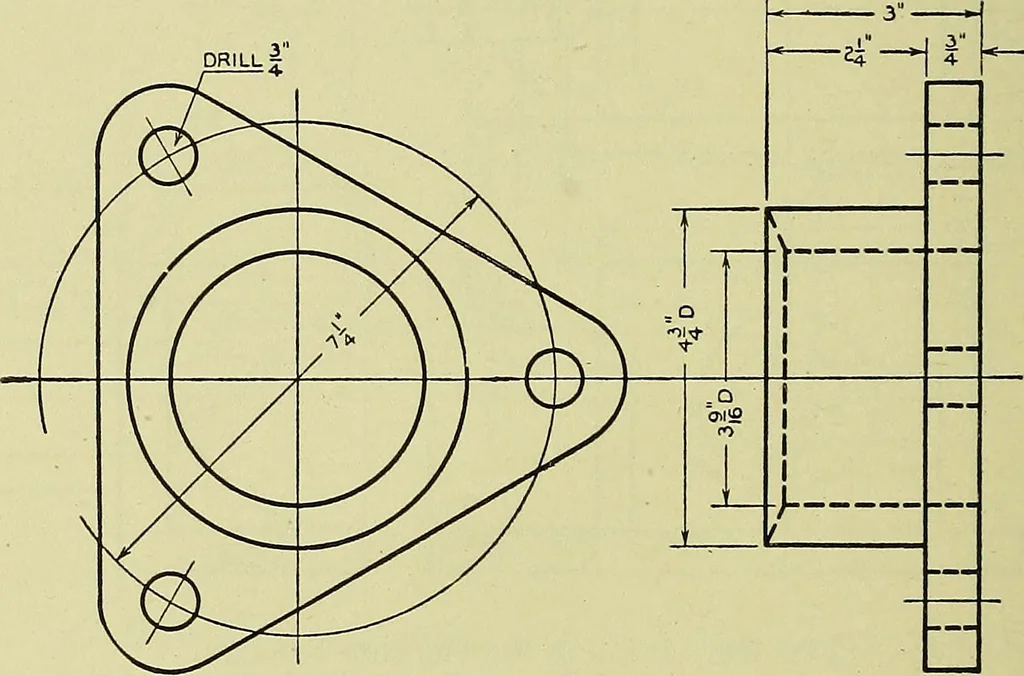

raight linedepend? (b) Give the steps in the construction necessary tolocate a point of tangency. 188 MECHANICAL DRAWING DATA FOR REVIEW PROBLEMS Given: The top, front, and right side views of an objectFig. 197. Required: To draw the top, front half section, and rightside views of the object shown… … Fig. 199. Stuffing Box Gland Given: The top and right side views of an object. Fig. 199.Required: To draw the top and front half section views ofthe object shown in Fig. 199. Scale, half size. CHAPTER VADVANCED DRAWING Prospectus The first years work outlined in Chapters I, II, III, and IVare…
Mechanical drawing
