Spur and bevel gearing; a treatise on the principles, dimensions, calculation, design and strength of spur and bevel gearing, together with chapters on special tooth forms and methods of cutting gear teeth (1914)
New York, The Industrial press; [etc., etc.] · leaf 246

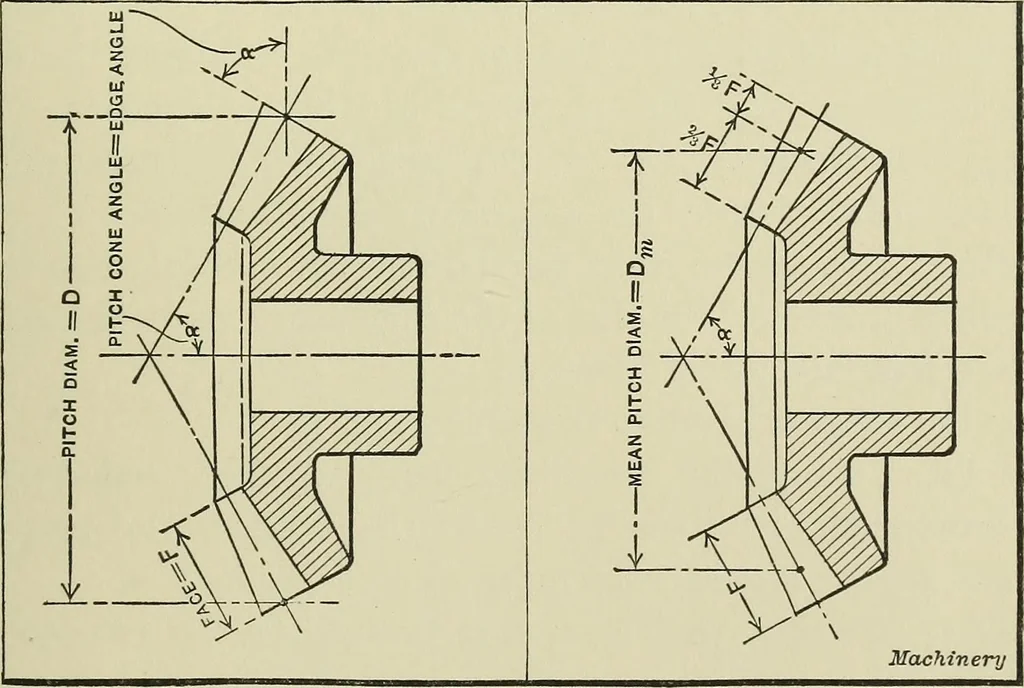

o rapidly varyingloads or where the drive is often started and stopped. Bearing Pressures Due to the Action of Bevel Gears UnderLoad. — The action of a pair of bevel gears under load producesa radial pressure on the bearings due to the tendency of the driverto climb onto the driven gear. The… … Fig. 2. Gear Dimensions requiredto determine Radial Pressureand End Thrust Fig. 3. Mean Pitch Diameterdefined for Purposes of Cal-culation The amount of radial bearing pressure and end thrust due to agiven load on a given gear may be calculated by the rules andformulas presented in the following.…
Gearing
