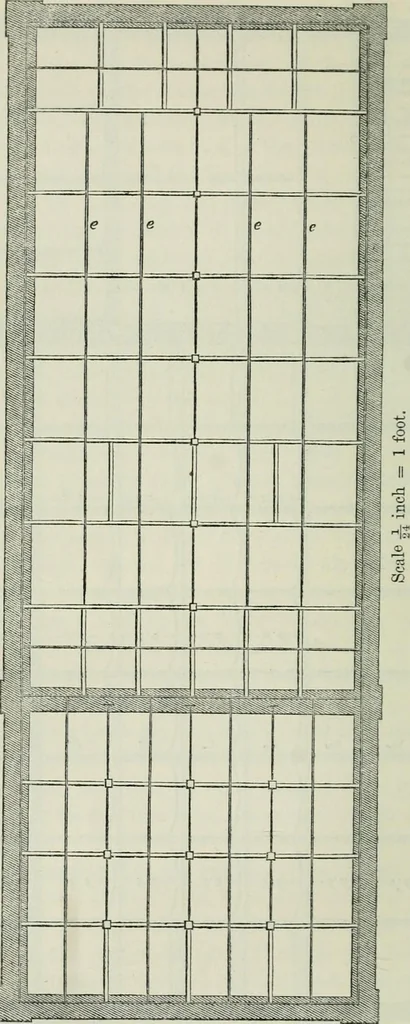

168 ON THE COXSTRUCTIOX OF Fig. 74. … FlRE-rROOF WAREHOUSES. 16!) which secure the ends of the beam to the columns. To the topflanges of the beams are riveted 6 flat tie-rods 2,V x ir, onebuilt into the walls at eacli side, and the others equally dividedbetween them and the centre of the building, as shown at e, e, c. Fig. 75.
