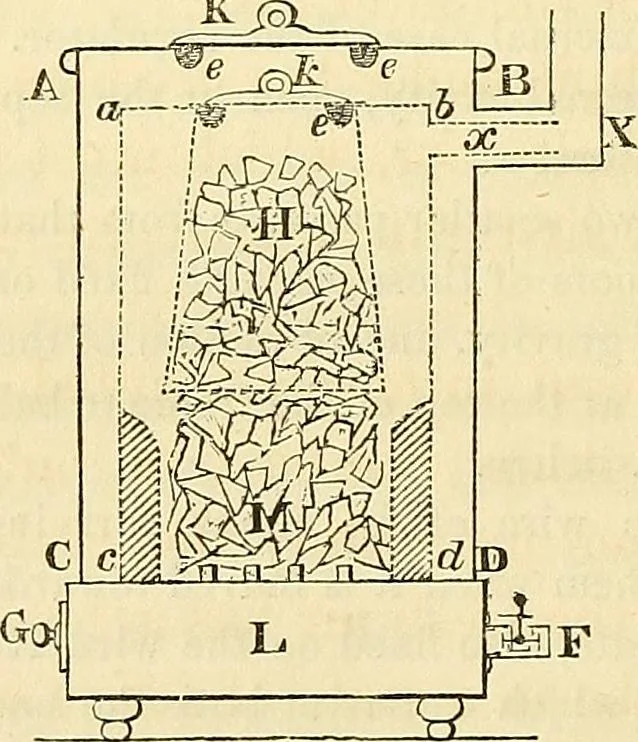

case, and certain additions and modifications now tobe described. It is exhibited in the adjoining wood-cut (Fig. 10), where the dotted lines and small lettersmark the internal stove, and the entire lines, theexternal case or covering. Fig. 10.K … The letters A B C D mark the external case, whichprevents the intense heat of the inner stove abedfrom damaging the air of the room. THE SELF-EEGULATINa FIRE. 139 F is the regulating valve, for admitting the air tofeed the fire. It may be placed near the ashpit-door,or wherever more convenient. The…
