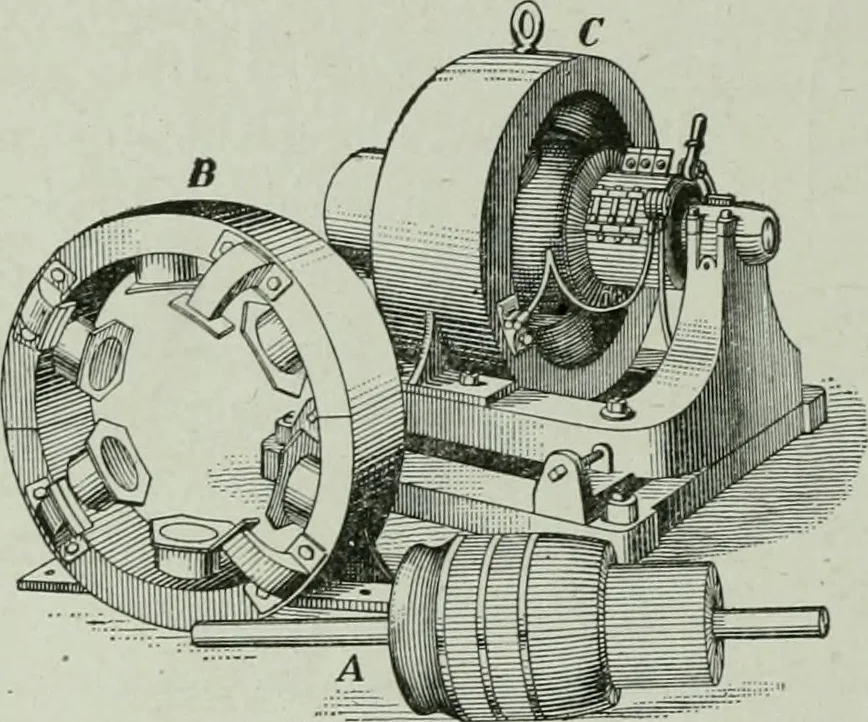

of lines of force through the coil C^ isincreasing, and an inverse current (contra-clockwise) is inducedin it; but as C3 and C^ present opposite ends when viewedfiom iV, the currents flow in the same absolute direction ineach, but in a direction opposite to that in the coils C^ and C.-,. Similarly… … Fig. 543.—Modern direct-current dynamo. A, Drumarmature ; B, multipolar field ; C, dynamo complete. Hence, it tlie eiuls of tlu^ wires oi the coils are connected totlie coininutator plates, and the brushes bear upon these platesat the points E and F as shown in the figure, a direct, orcontinuous,…
