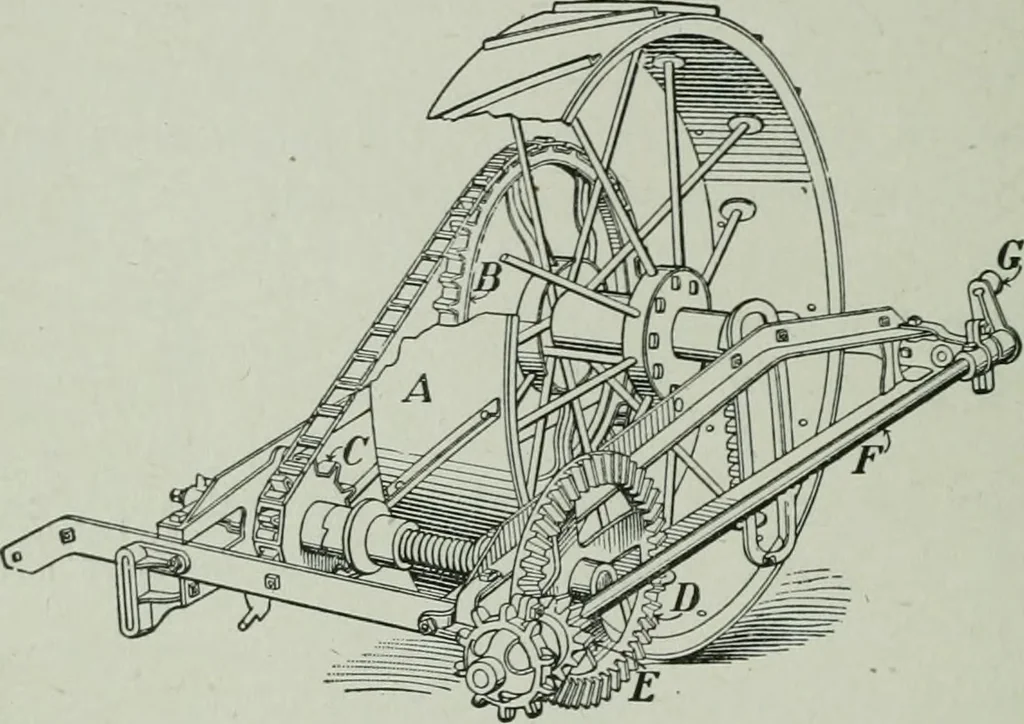

ank G ia 3 in. long. Neg- Fia. 101.—The driving part of a self-binder. The driving-wheel A is i„„f,-„„ fT-;of;r.tidrawn forward by the horses. On its axis is the sprocket-wheel B, i«^<-ig iiicbioii,and this, by means of the chain drives the sprocket-wheel C. The what pull On thelatter drives the… … 3. Explain the action of thelevers in the scale shown inFig. 102. If HF^ = 12 ft., FW^ = 4inches, 3IN = 36 inches, KM= 3 inches, what weight on Nwould balance 2000 pounds ofa load (wagon and contents)?In the scale E^F^ = EF, and7^2)1 = p2i)\ so the load issimply divided equally betweenthe two…
