Putnam, J. Pickering (John Pickering), 1847-1917 · Boston, Ticknor and Co. · leaf 91

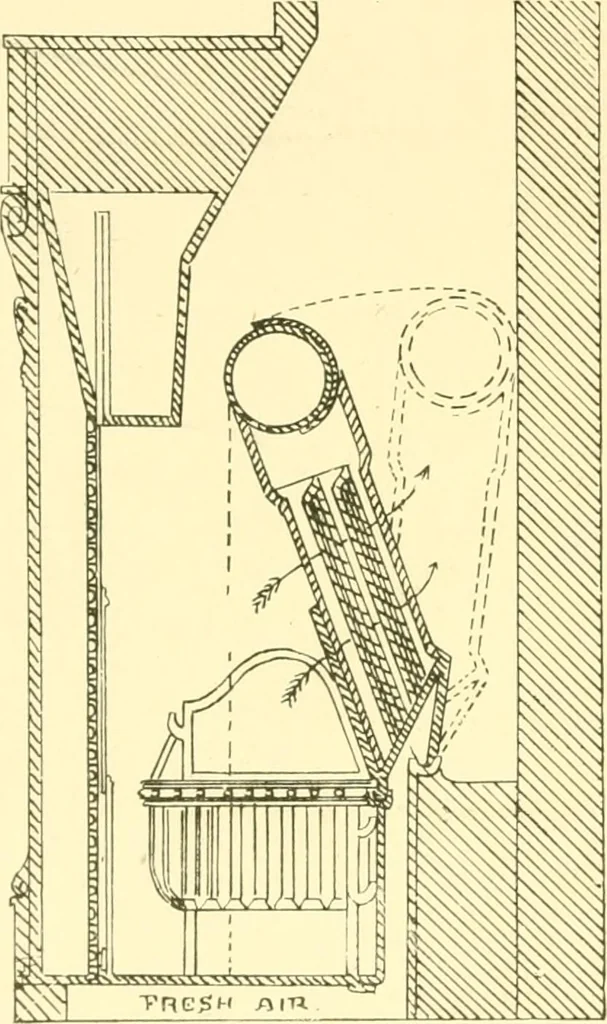

is objectionable, aswell on account of its costliness anil complexity, as on account of the diffi-culty of cleaning or making repairs. The Lloyd fireplace is represented l>\ Figs. 91, 92, 93, 94, and .•>.Two stiips of sheet-iron, benl as shown in Fig. 94, are fastened to thehack of the… … Fig. 86. Section of Cordiers Fireplace. T II E O 1 E N F I R EPLAC E 59 The fresh air enters behind the fireplace, circulates below, on each side,and above the stove, and enters the room just over the mantel at the backedge of the shelf, as shown in the vertical section (Fig. 91). This fire-place…
Fireplaces
