Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice (1916)
Ritchey, James, Monroe, Walter W. (Walter William), b. 1869 · Chicago, American technical society · leaf 153

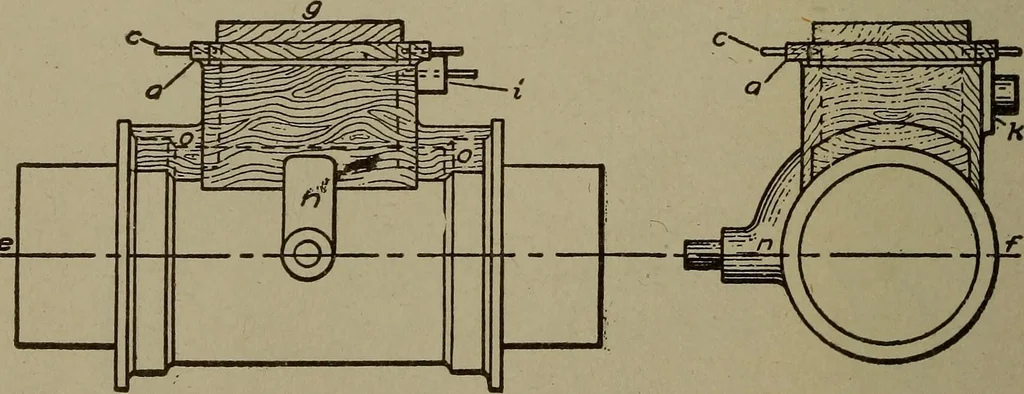

W Fig. 247. Built-Up Flange for CylinderPattern … Fig. 248. Two Views of Cylinder Pattern Including Steam Chest bolts of the chest cover, are left loose, being kept in place by long,wires or dowel pins* as shown at cc, so that they can be withdrawn PATTERN MAKING 137
Patternmaking
