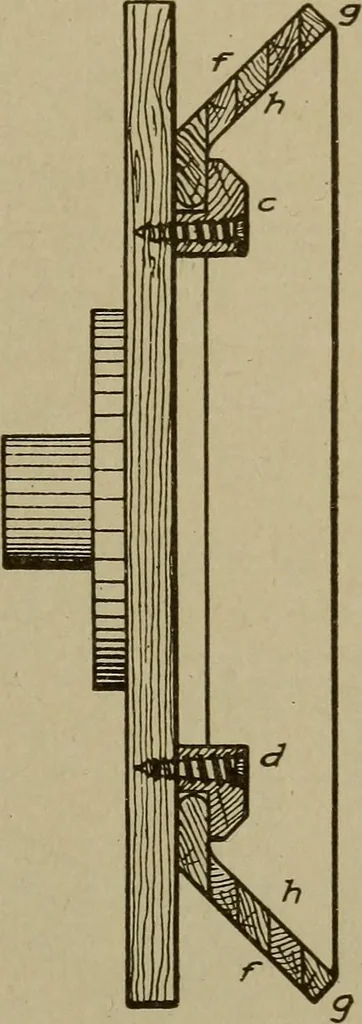

9 Fig. 261. Large Bevel and Miter Gears Con-structed of Built-Up Stock and Turned onFaceplate Fig. 262. Section of Miter Gear, Shown Screwed to Faceplate for Turning section of hub, arm, rim, and tooth. Marking the thickness ofsegments on this layout will show the diameter dimensions, whichcan be…
