Twentieth century hand-book for steam engineers and electricians with questions and answers; a practical non-technical treatise .. (1913)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & company · leaf 1217

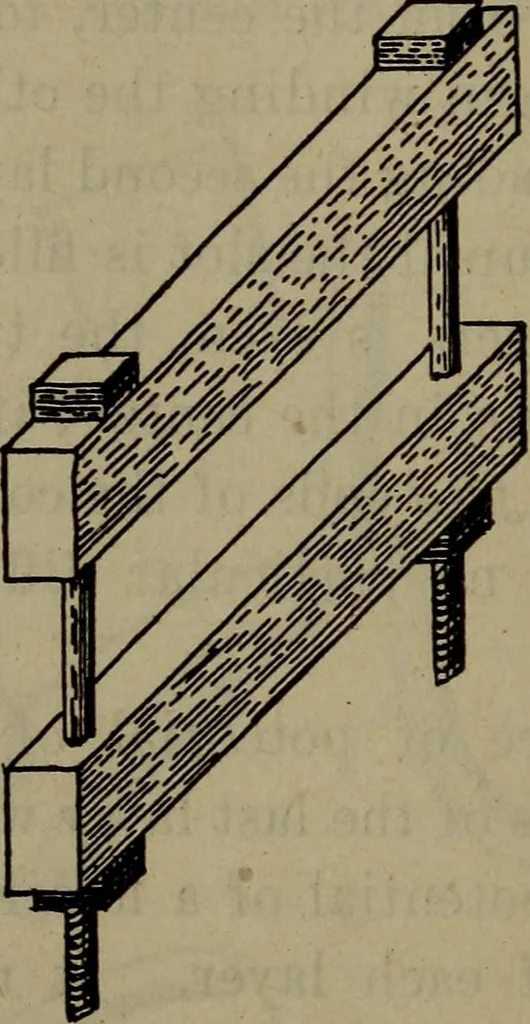

on the other wires, and will gradually forceits way down. 1188 Steam Ertgineering If the armature to be wound, has no slots, a few clamps(Fig. 532) will serve to hold the wire in place while a coilis being wound. Before starting the winding, tape should be laid on thearmature, leaving it long… … Fig. 532 the wires of an armature, whether dynamo or motor, is attimes very severe, and if there is any flaw it will surelyshow itself. In the case of fine windings, each layer as it is put inplace should be thoroughly soaked with shellac. No cur-rent, except of a very low potential from a small…
