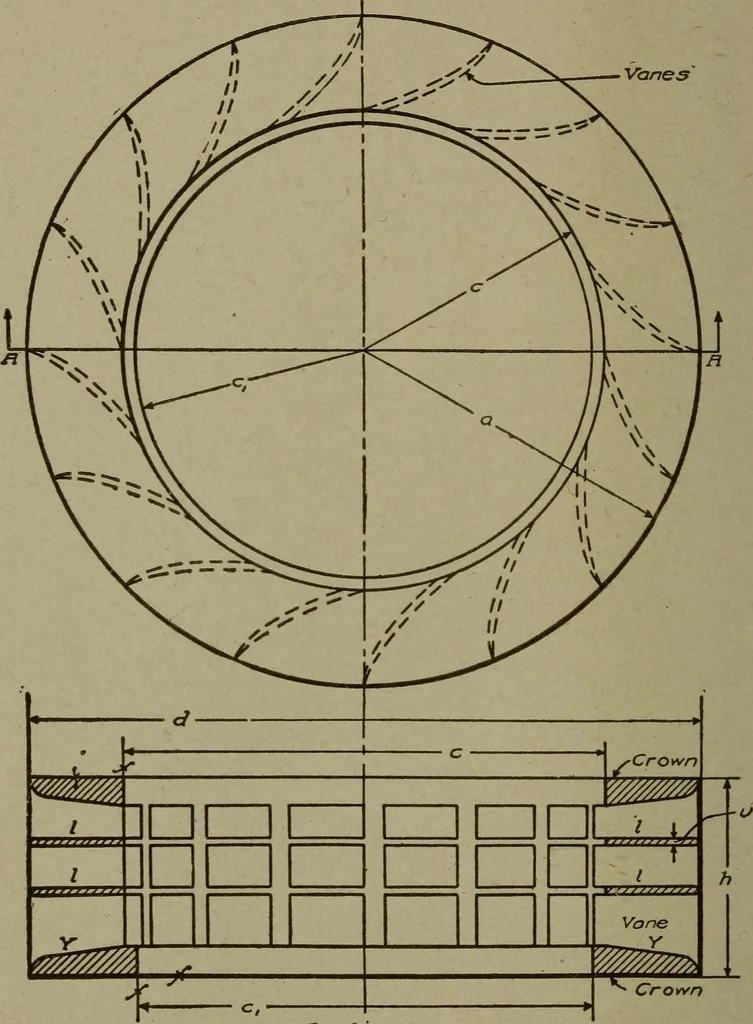

erstood that the rotor ring is the revolving portion, while theguide ring is stationary, and that water passing through the guidering from outside to inside continues on through the rotor ringand discharges into and out through its center. The guide ring isbolted to the casing and the rotor ring is… … Section S3 S3Fig. 272. Plan and Radial Section of Guide Ring most wear lined with sheet brass, or perhaps hard wood. Theseboxes are not made of solid glued stock, but are framed togetherin such a way as to prevent as much as possible of the distortiondue to shrinkage. However, in our consideration…
