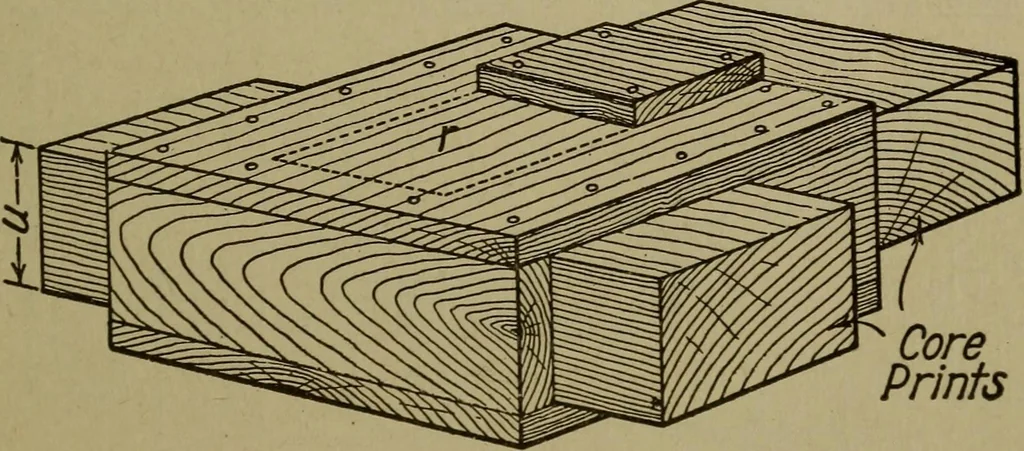

Fig. 348. Drag Pattern eg, Fig. 347 … CorePrints Fig. 349. Master Pattern for Part clt Fig. 348 Connecting the link j and ji by the arms I and h to diametricallyopposite points on the disk k transmits an opposing motion to linksj and ji, moving the parts cc away from each other, pressing the 202 PATTERN MAKING mold to the form desired,…
