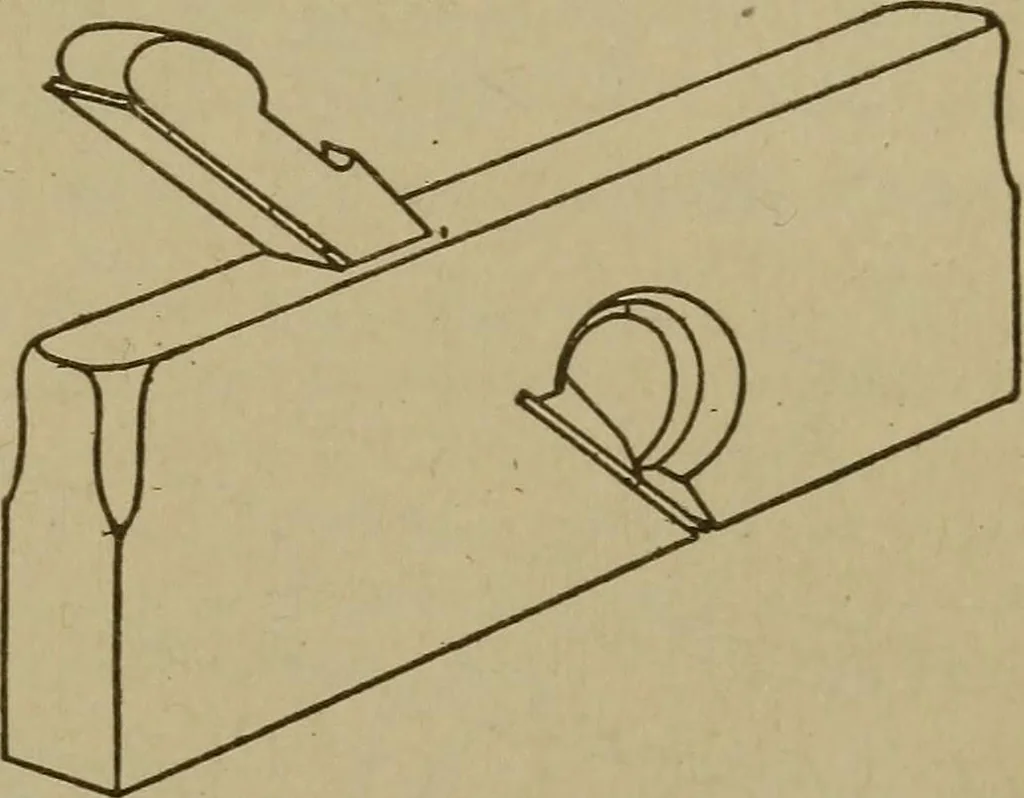

the knob on thefront of the plane. Special Planes. Rabbet Plane.Among the special planes used bythe pattern maker, the rabbetplane, llustrated in Fig. 29, is the Fig-29- most important. The face of this plane is always flat and at rightangles to the sides. It is used in working out square angles… … Rabbet Plane Fig. 30. Rabbeted Lap Joint the face of the plane, works much more smoothly and easily thanone in which the iron is set at right angles to the side of the plane.The improved rabbet plane shown in Fig. 31 is fitted with depthgage, and also with a spur cutter, both of which are often of…
