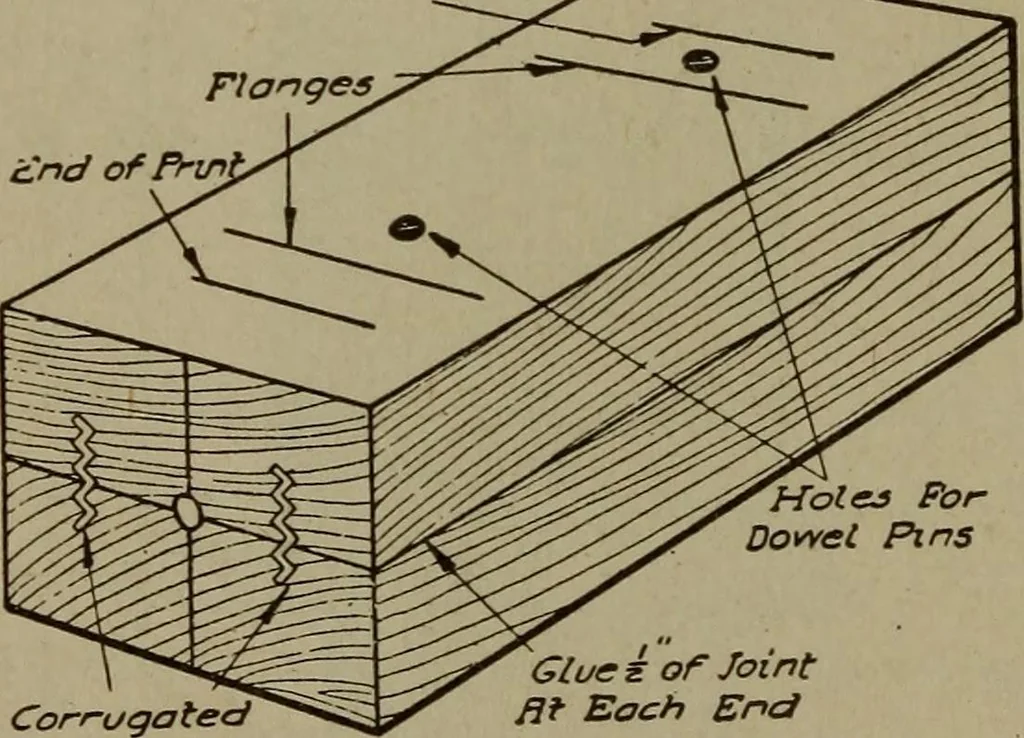

ted toone side of the center line, if itis not desirable to put them in the core print. The dowel pinsshould be placed as far apart as possible to prevent side slip ofthe pattern wrhen the dowel pins and holes have become wornMark on one side of the stock the form of the pattern to showthe… … Holes ForDowel Pins Corr-UiFasteners Glues of JointEach End Fig 153. Split Stock Ready for Turning PATTERN MAKING 79 the holes drilled just deep enough to have the surface of the patternturn smoothly. These pins should be made of the same stock asthat used for the pattern. The dowel pins should…
