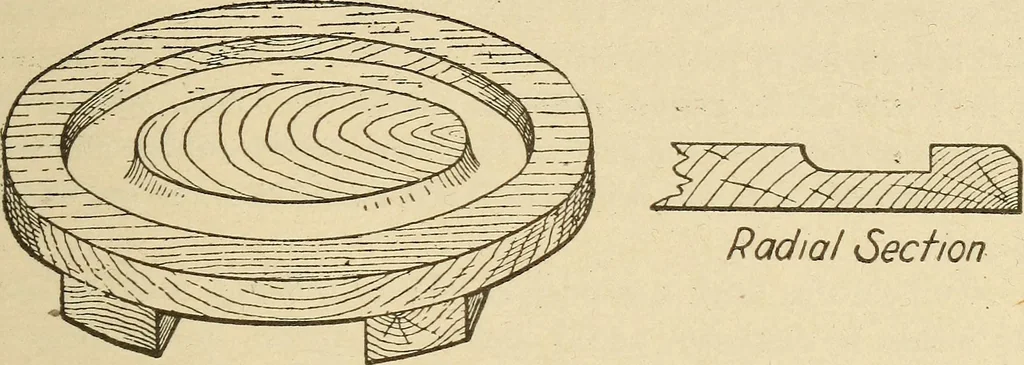

Fig. 167. Sheave Pulley Pattern with GrooveMade with Dry-Sand Core PATTERN MAKING 89 If the wood has been well seasoned, and the work carefullydone, a perfect 6-inch sheave-pulley pattern will be obtained. Thepattern for a sheave pulley has been explained because it embracesso many profitable… … Radial Section Fig. 168. Core Box for Sheave Pulley building up, but especially in chucking and turning, all of whichmust be done with great care and accuracy. Dry=Sand Ring Coring. A more practical way to producecastings of a sheave wheel would be to construct a solid wood pat-tern with a core…
