The principles of pattern making, written specially for apprentices and students in technical schools (1900)
Horner, Joseph Gregory, 1847-1927 · London, New York, Pitman · leaf 58

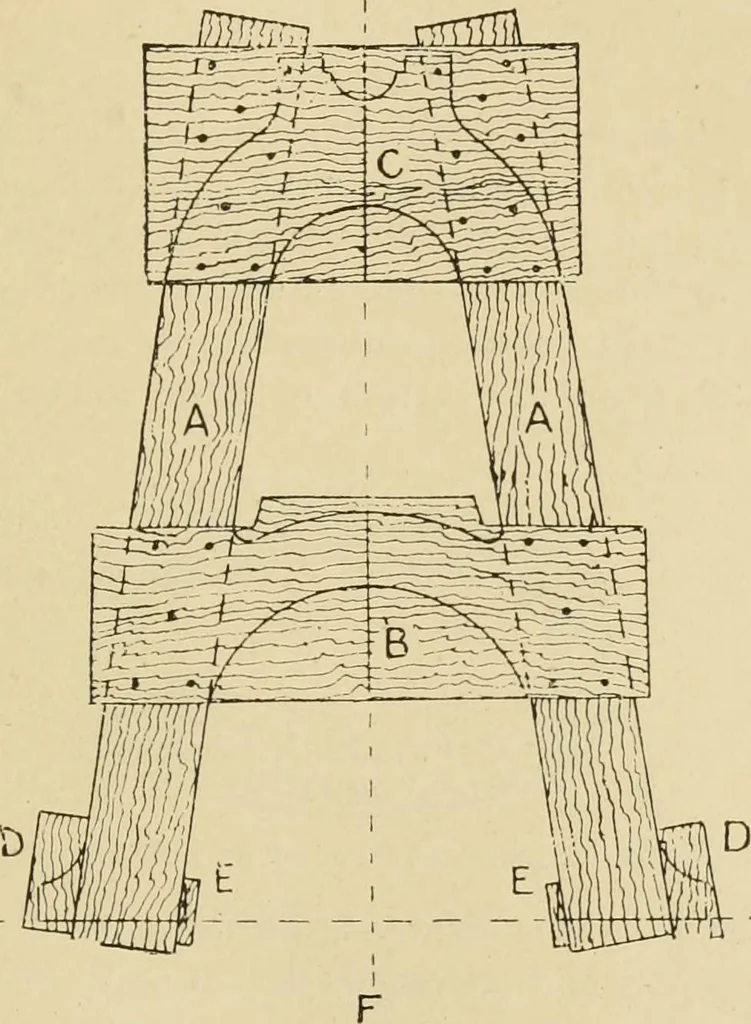

attern of Pump Standard. pleted, of a pump standard. Fig. 31 shows the platedportion only, framed together, and marked out in readi-ness to be cut to outline. A comparison of the twofigures will show their relations. In Fig. 31 there are four main pieces A, A, B, C,halved together, and either… … Fig. 31. Framing for above marked out. 30. Blocks D and E are glued to A A to make upwidth sufficient for the feet. The centre line F-F,carried vertically midway between A A ; and the baseline Gr-G, at a right angle therewith, are the fund a- 48 PRINCIPLES OF PATTERN MAKING. mental lines from which…
Patternmaking
