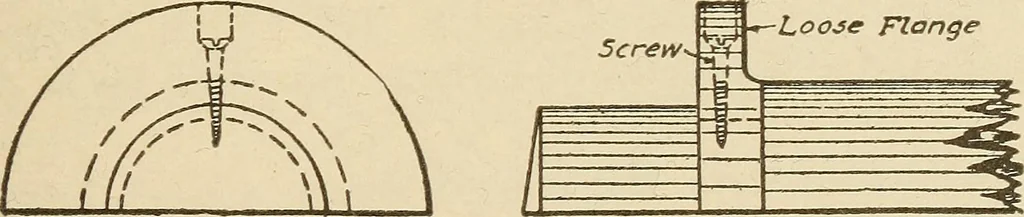

Fig. 221. Construction of Flanges forTipe Pattern Fig. 222. Diagram Showing Rece.13 forFlanges in Pipe Pattern as shown in the diagram, Fig. 222; it can easily be seen that whenthe flange is fitted therein, it adds greatly to the strength of the joint. Looje Flange … Fig. 223. Interchangeable Flanges on Pipe Pattern Flanges are often fastened to the pipe pattern by screws only,so that flanges of different diameter can be attached, Fig. 223. <Sfoc/c. The flanges should be made by gluing up three piecesand crossing the grain of the pieces so that the grain of…
