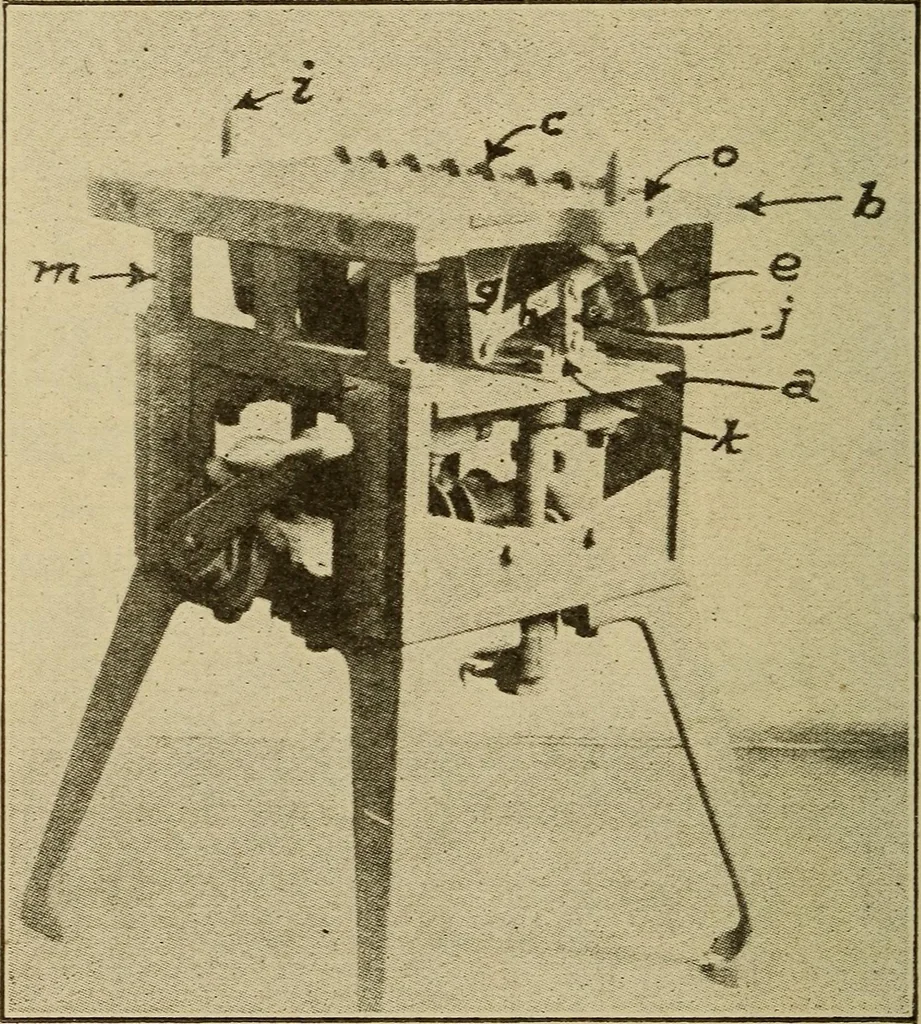

Fig. 310. Nowel or Drag Stripping-PIate Hand-RammedMolding Machine endwise onto the holder frame, as indicated in Fig. 308, the bevelon the inside of the lugs o being molded with a dry-sand core, andthe round recesses in the holder also being molded with a dry-sand 184 PATTERN MAKING core. The… … .Fig. 311. Drag Machine with Pattern in Position to Make Mold1^
