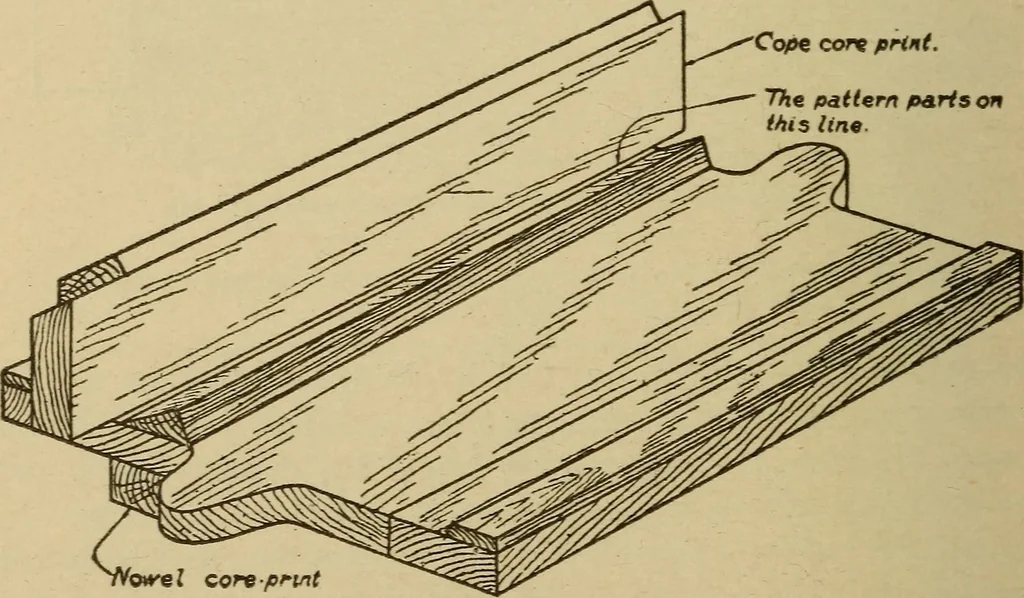

in tAe ncntei moid. Fig. 314. Diagram of Stripping Plate. One Bod Brokea to Show Holes throughWhich Pattern Is Drawn — Cope core print. The pattern pa.ris onthis line … Fig. 315, Pattern for Stripping Plate Plate Pattern, The plate is made of narrow strips of stock,glued so as to reverse the heart side of adjoining pieces. It willnot be necessary to spline these patterns, for only one casting is PATTERN MAKING 187 usually required and the pattern is generally…
