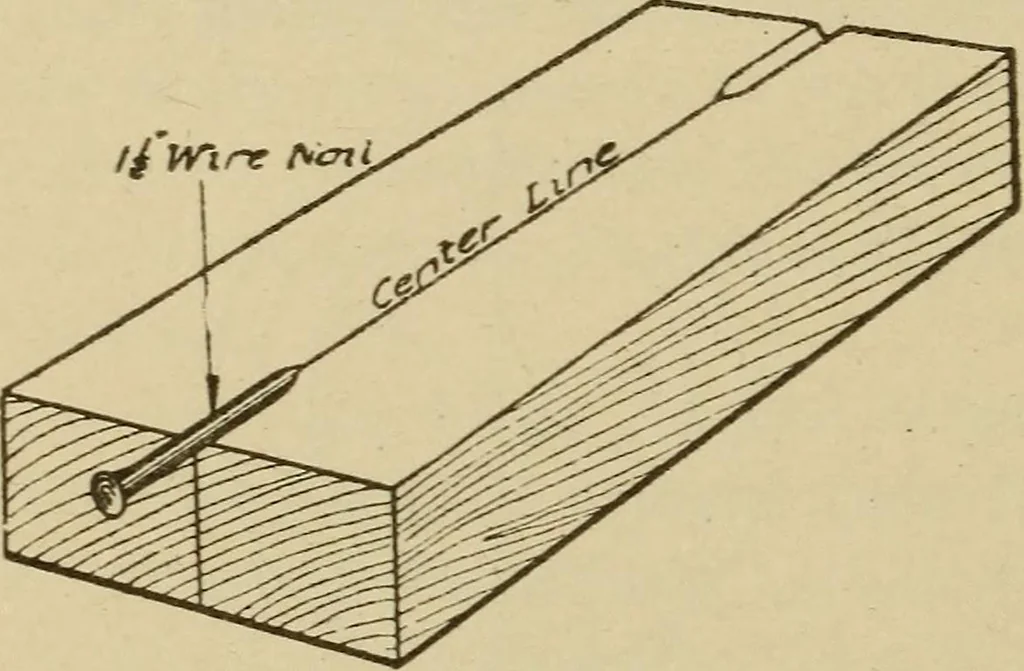

Finished Bronze BearingI^langed at Both Ends Fig. 151. Pattern for Bushing,Fig. 150 edge of each straight and at right angles to its face side, with themarking gage draw a center line on each, not only on the face butalso across each of the two ends. Fig. 152. Place about J inch ofthe pointed end… … Prepanng Stock for Split Lathe Work stock and tailstock lathe centers. Glue | inch of the joint at eachend, and clamp the stock together, being careful to keep the endsand the edges of the stock flush with each other. At the endsinsert two metal corrugated fasteners, as shown in Fig. 153, placing…
