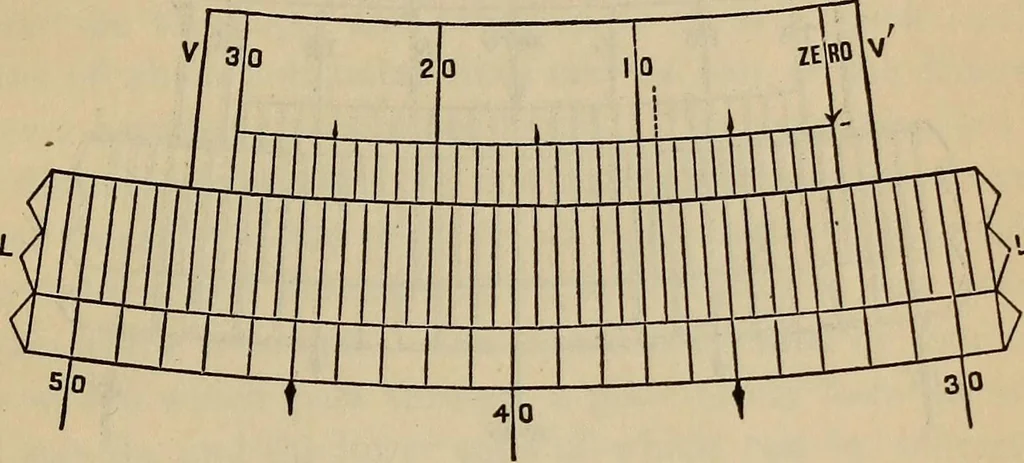

the next lower line of the rod.4 of the vernier is y^ of a foot above the next lower line of the rod.3 of the vernier is j^ of a foot above the next lower line of the rod.2 of the vernier is j^ of a foot above the next lower line of the rod.1 of the vernier is j^/fo of a foot above the next lower… … Fig. II. Oompass Verniers. Let LL1 (Fig. 11) represent the limb ofthe compass graduated to half-degrees, and W1 the vernierdivided into thirty equal spaces, equal to twenty-nine spacesof the limb. Then one space of the vernier is less than onespace of the limb by 1, and the reading may be obtained…
