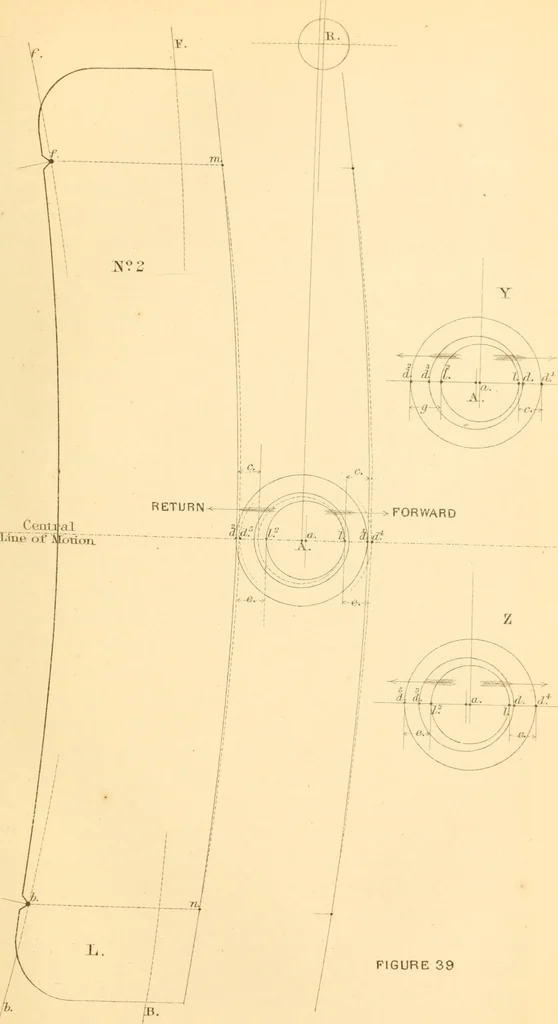

FIGURE 39 MODIFICATIONS. 123 gears but precisely equal in the mid gear, witli a forwardstroke lead opening increasing from I d (Fig. Z) in the fullto I d* in the mid gear, and with a return stroke lead, open-ing gradually from I2 dz in the full to I2 d5 in the mid gear.Both these lead openings will…
