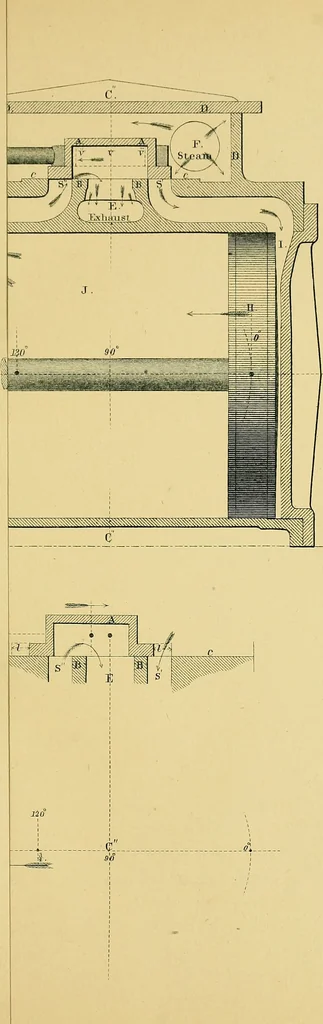

ccentric pin (or centre of eccentric) willbe considered as transmitting their motions through slottedcross-heads to the piston and the valve. (See Fig. 5.) The axes of the cylinder and of the valve stem do notalways pass through the centre of the main shaft. Whenthat of the latter lies above and…
